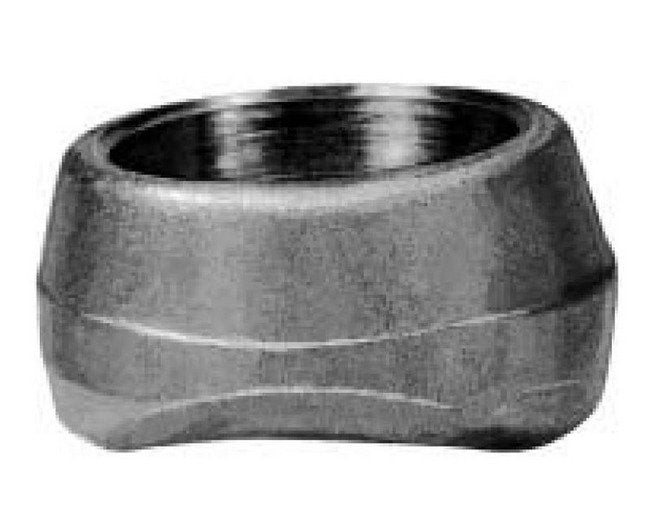

Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-d679a7
High-quality Class 3000 Socket-Weld Anvilets for precise and reliable pipe fittings. Compatible with standard and XS pipes.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

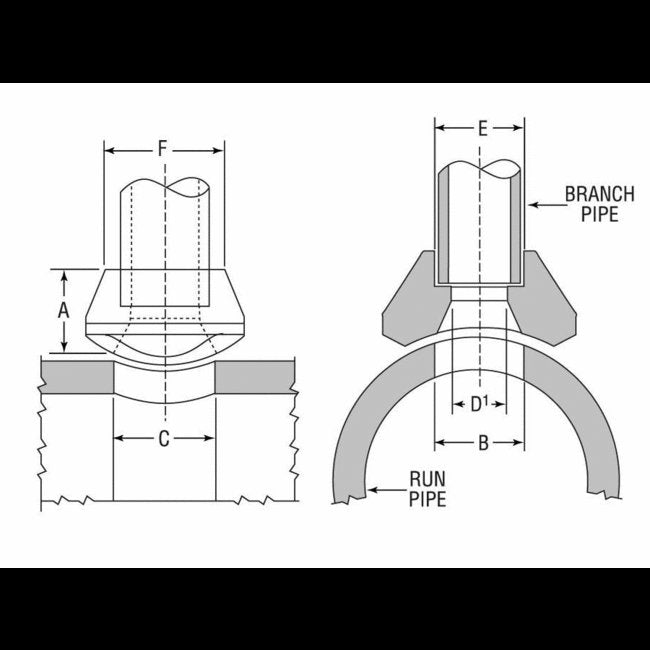

The Class 3000 Socket-Weld Anvilets offer precise tolerance, suitable for sizes 2 1/2 NPS and larger with a tolerance of ± 0.06. Designed for both reducing and full sizes, these Anvilets are compatible with standard and XS pipes. With outlet sizes ranging from 3/4 NPS to 20 DN and a weight of 0.18 kg, these Anvilets are ideal for various pipe size applications. The dimensions are meticulously crafted to ensure seamless integration, making them a reliable choice for industrial fittings.
Product Specifications
Specifications Class
3000
Specifications Dimension A
27.00 mm
Specifications Dimension B
30.00 mm
Specifications Dimension C
30.00 mm
Specifications Dimension D 003
21 mm
Specifications Dimension E 001
27 mm
Specifications Dimension F
37.00 mm
Specifications Nominal Run Pipe Size Dn
25 - 900
Specifications Nominal Run Pipe Size Nps
1 - 36
Specifications Outlet Size Dn
20
Specifications Outlet Size Nps
3/4
Specifications Weight
0.18 kg
