Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-1fbb40
Precision-engineered Class 3000 Socket-Weld Anvilets for secure industrial connections. Size range NPS 4 to NPS 36. Reliable and durable fittings.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$129.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

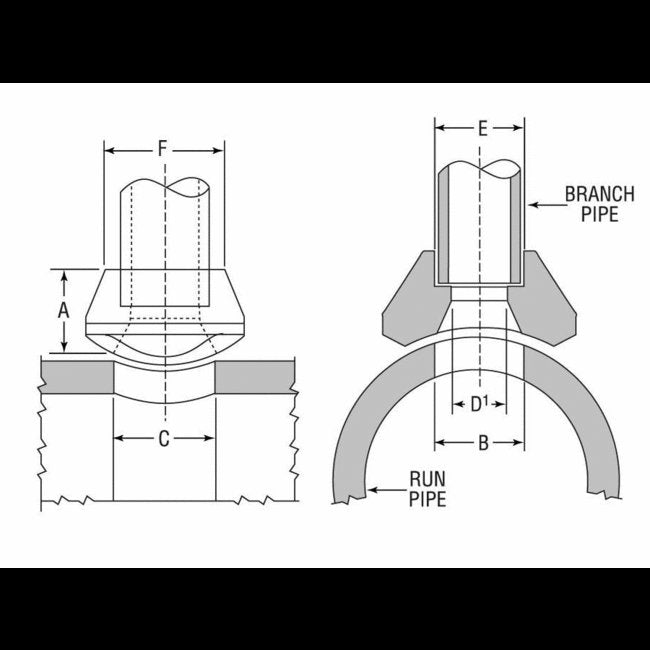

The Class 3000 Socket-Weld Anvilets are precision-engineered fittings designed for industrial applications requiring secure connections. Featuring a tolerance of ± 0.06 on sizes 2 1/2 NPS and larger, these Anvilets are suitable for both reducing and full-size installations. With outlet sizes NPS 4 (DN 100) and a nominal run pipe size range of NPS 5-36 (DN 125-900), these Anvilets ensure a reliable connection with standard and XS pipes. The dimensions, including A, B, C, D (± 0.03), E (± 0.01), F, and weight of 3.60 kg, meet stringent industry standards for durability and performance.
Product Specifications
Specifications Class
3000
Specifications Dimension A
48.00 mm
Specifications Dimension B
121.00 mm
Specifications Dimension C
121.00 mm
Specifications Dimension D 003
102 mm
Specifications Dimension E 001
115 mm
Specifications Dimension F
130.00 mm
Specifications Nominal Run Pipe Size Dn
125 - 900
Specifications Nominal Run Pipe Size Nps
5 - 36
Specifications Outlet Size Dn
100
Specifications Outlet Size Nps
4
Specifications Weight
3.60 kg
