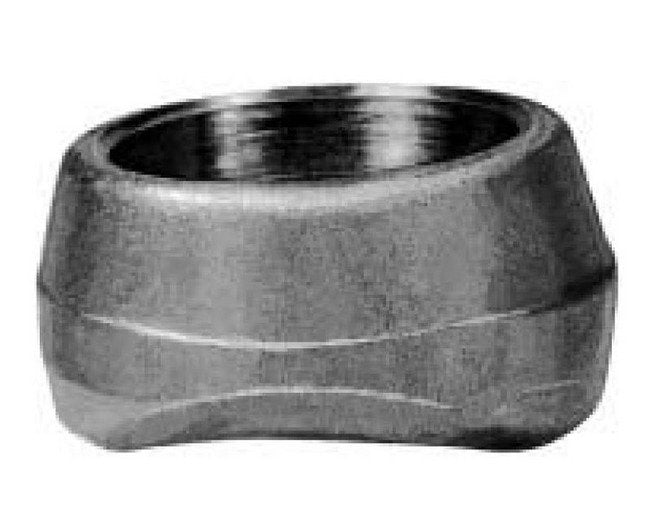

Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-b9368e
High-performance Class 3000 Socket-Weld Anvilets for precise industrial applications. Sizes from 2 1/2 NPS (65 DN) with a tolerance of ± 0.06. Compatible with standard and XS pipes.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$45.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

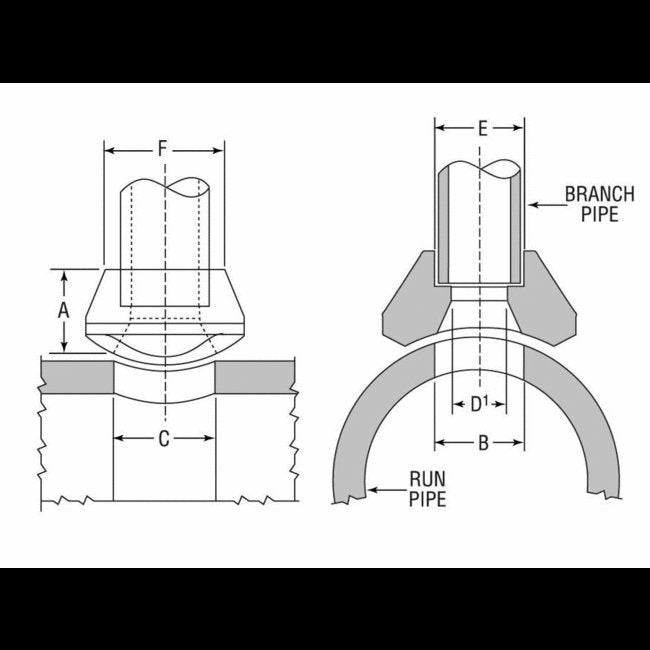

The Class 3000 Socket-Weld Anvilets are precision-engineered fittings designed for superior performance in industrial settings. With outlet sizes of 2 1/2 NPS (65 DN) and above, these Anvilets maintain a tolerance of ± 0.06, ensuring a perfect fit for Class 3000 reducing and full sizes. Compatible with standard and XS pipes, these Anvilets offer exceptional dimensional accuracy, including A (40.00 mm), B (76.00 mm), C (76.00 mm), D (63 mm ± 0.03), E (74 mm ± 0.01), F (87.00 mm), and weigh 1.40 kg. Trust in the reliability and precision of these Anvilets for your industrial piping needs.
Product Specifications
Specifications Class
3000
Specifications Dimension A
40.00 mm
Specifications Dimension B
76.00 mm
Specifications Dimension C
76.00 mm
Specifications Dimension D 003
63 mm
Specifications Dimension E 001
74 mm
Specifications Dimension F
87.00 mm
Specifications Nominal Run Pipe Size Dn
80 - 900
Specifications Nominal Run Pipe Size Nps
3 - 36
Specifications Outlet Size Dn
65
Specifications Outlet Size Nps
2 1/2
Specifications Weight
1.40 kg
