Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-5e5037
Class 3000 Socket-Weld Anvilets for precise industrial fitting. Tolerance ± 0.06, NPS 1 1/4, DN 32, Class 3000, durable design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

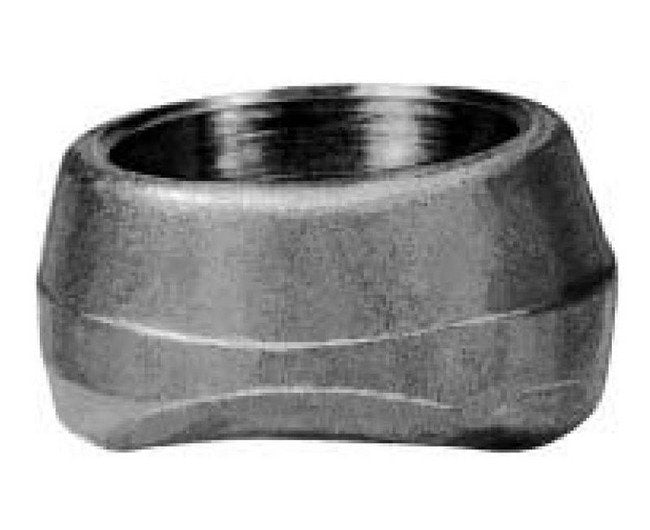

The Class 3000 Socket-Weld Anvilets are precision-engineered fittings designed for reliable performance in industrial settings. With a tolerance of ± 0.06 on sizes 2 1/2 NPS (65 DN) and larger, these Anvilets ensure a secure fit with Class 3000 reducing and full sizes. Suitable for use with standard and XS pipes, these Anvilets feature an outlet size of NPS 1 1/4 (DN 32) and dimensions meticulously crafted for optimal functionality. Made with durability in mind, these Anvilets weigh 0.50 kg and meet stringent industry standards.
Product Specifications
Specifications Class
3000

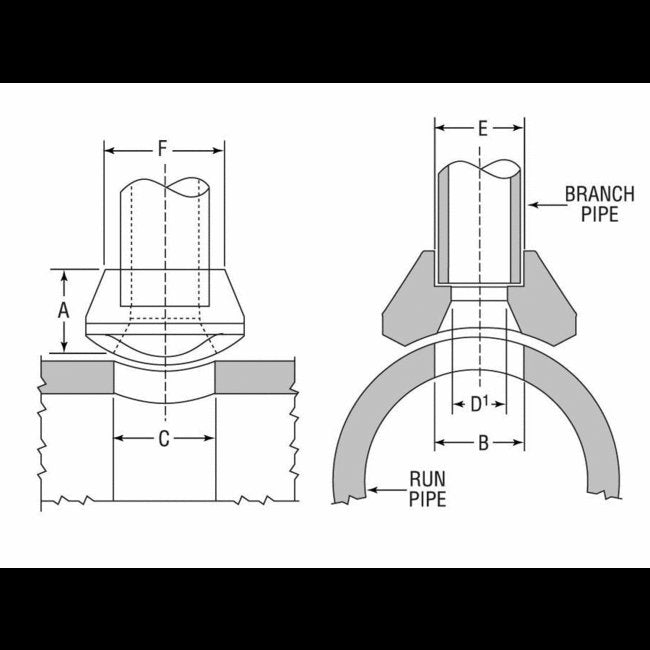

Specifications Dimension A
33.00 mm
Specifications Dimension B
44.00 mm
Specifications Dimension C
44.00 mm
Specifications Dimension D 003
35 mm
Specifications Dimension E 001
43 mm
Specifications Dimension F
56.00 mm
Specifications Nominal Run Pipe Size Dn
40 - 900
Specifications Nominal Run Pipe Size Nps
1 1/2 - 36
Specifications Outlet Size Dn
32
Specifications Outlet Size Nps
1 1/4
Specifications Weight
0.50 kg
