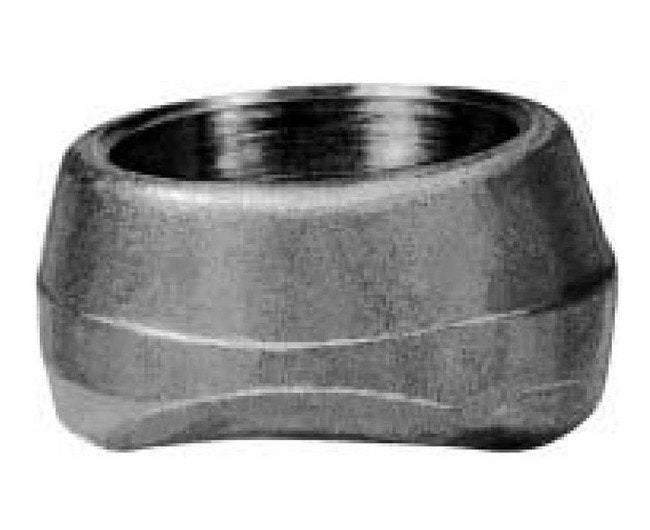

Class 3000 Socket-Weld Anvilets
Class 3000 Socket-Weld Anvilets
SKU:FIT-ad5219
Enhance piping systems with precision-made Class 3000 Socket-Weld Anvilets for top-notch performance and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets
$29.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

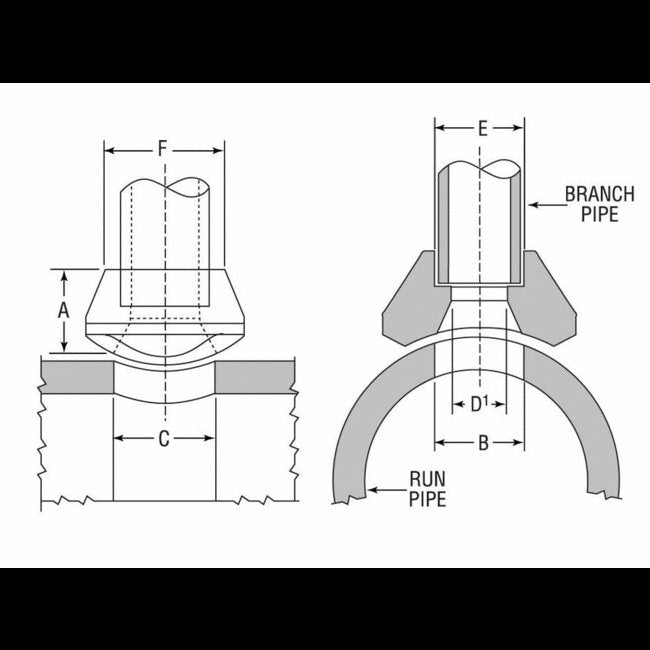

Upgrade your piping systems with our Class 3000 Socket-Weld Anvilets. With a high precision tolerance of ± 0.06 on sizes 2 1/2 NPS and above, these Anvilets are suitable for both reducing and full sizes applications. Compatible with standard and XS pipes, these Anvilets boast a robust build and precise dimensions including Outlet Size NPS/DN, Dimension A-F, and a weight of 0.54 kg. Ensure top-notch performance and durability in your industrial setups with our Class 3000 Socket-Weld Anvilets.
Product Specifications
Specifications Class
3000
Specifications Dimension A
35.00 mm
Specifications Dimension B
41.00 mm
Specifications Dimension C
51.00 mm
Specifications Dimension D 003
41 mm
Specifications Dimension E 001
49 mm
Specifications Dimension F
62.00 mm
Specifications Nominal Run Pipe Size Dn
40
Specifications Nominal Run Pipe Size Nps
1 1/2
Specifications Outlet Size Dn
40
Specifications Outlet Size Nps
1 1/2
Specifications Weight
0.54 kg
