Class 3000 Socket-Weld Anvilets - NPS 3.5, DN 90
Class 3000 Socket-Weld Anvilets - NPS 3.5, DN 90
SKU:FIT-857f51
Class 3000 Socket-Weld Anvilets for precise pipe connections. NPS 3.5, DN 90. ANSI/ASME compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets - NPS 3.5, DN 90
$89.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets - NPS 3.5, DN 90
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your piping system with our Class 3000 Socket-Weld Anvilets designed for precision and efficiency. These Anvilets feature an outlet size of NPS 3.5 and DN 90, suitable for nominal run pipe sizes ranging from 4 to 36 NPS and 100 to 900 DN. With dimensions meeting exacting standards and a weight of 2.00 kg, these Anvilets are ideal for industrial applications requiring reliable and durable fittings. Compliant with ANSI/ASME standards, these Socket-Weld Anvilets ensure a secure connection with standard and XS pipes, providing versatility and performance in various setups.

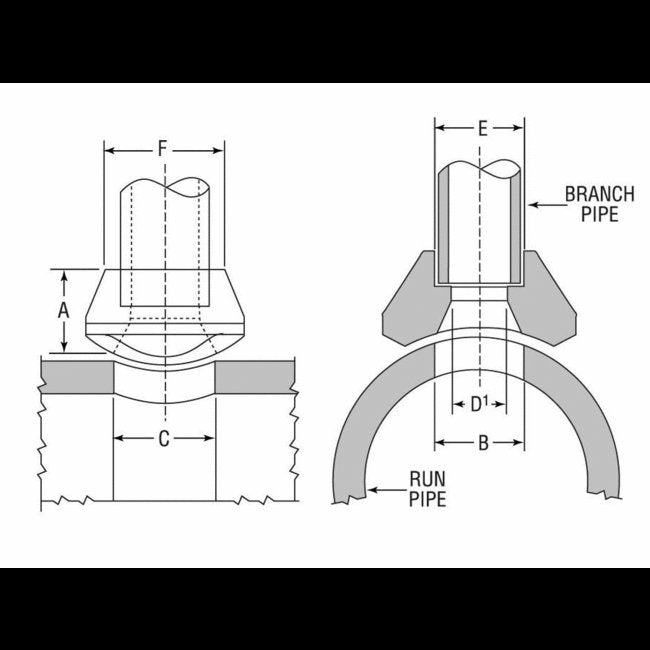

Product Specifications
Specifications Class
3000
Specifications Dimension A
54.00 mm
Specifications Dimension B
102.00 mm
Specifications Dimension C
102.00 mm
Specifications Dimension D 003
90 mm
Specifications Dimension E 001
103 mm
Specifications Dimension F
124.00 mm
Specifications Nominal Run Pipe Size Dn
100 - 900
Specifications Nominal Run Pipe Size Nps
4 - 36
Specifications Outlet Size Dn
90
Specifications Outlet Size Nps
3 1/2
Specifications Weight
2.00 kg
