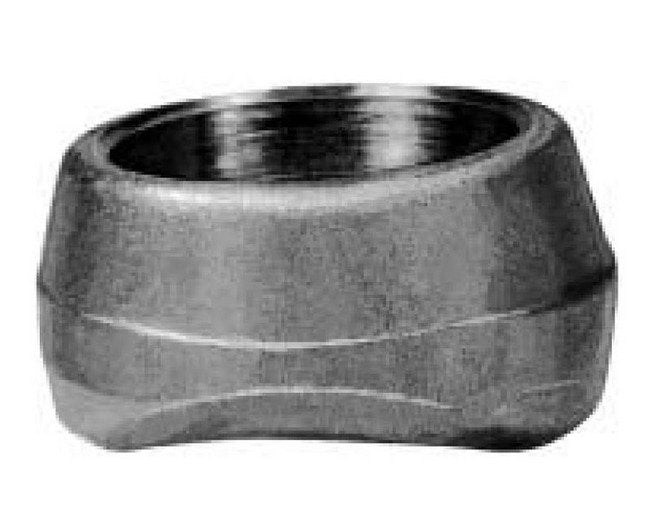

Class 3000 Socket-Weld Anvilets - Set of 1
Class 3000 Socket-Weld Anvilets - Set of 1
SKU:FIT-86a288
Upgrade your piping system with our precise Class 3000 Socket-Weld Anvilets for enhanced durability and versatility.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Anvilets - Set of 1
$59.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Anvilets - Set of 1
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your piping system with precision and durability using our Class 3000 Socket-Weld Anvilets. These Anvilets are designed to offer a tolerance of ± 0.06 in sizes 2 1/2 NPS (65 DN) and larger, suitable for both reducing and full-sized applications. With outlet sizes of NPS 3 and DN 80, they are compatible with standard and XS pipes, ensuring versatility in installation. The dimensions and weight of our Socket-Weld Anvilets are meticulously crafted to meet stringent industry standards, guaranteeing reliable performance and longevity in diverse applications.

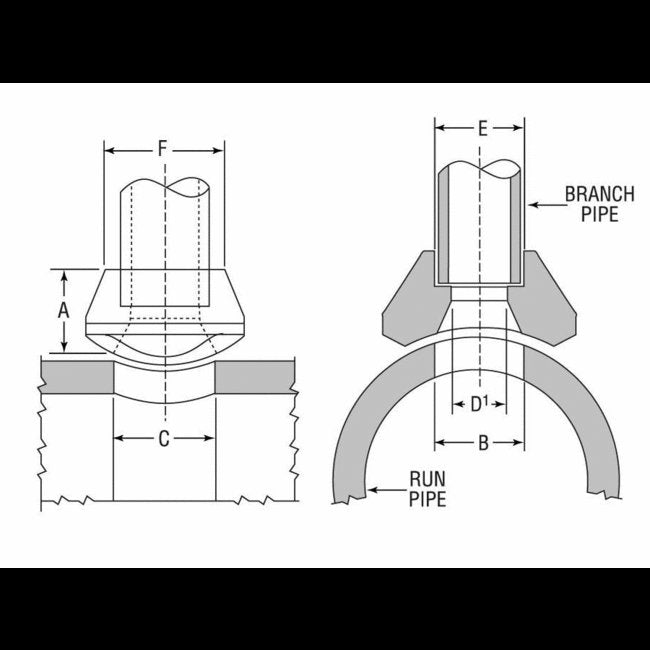

Product Specifications
Specifications Class
3000
Specifications Dimension A
44.00 mm
Specifications Dimension B
94.00 mm
Specifications Dimension C
94.00 mm
Specifications Dimension D 003
78 mm
Specifications Dimension E 001
90 mm
Specifications Dimension F
105.00 mm
Specifications Nominal Run Pipe Size Dn
90 - 900
Specifications Nominal Run Pipe Size Nps
3 1/2 - 36
Specifications Outlet Size Dn
80
Specifications Outlet Size Nps
3
Specifications Weight
1.90 kg
