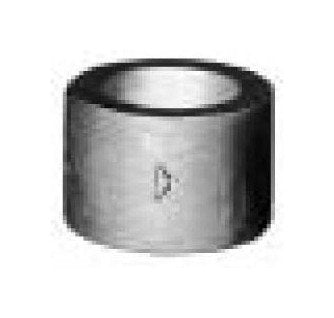

Class 3000 Socket-Weld Forged Steel Couplings - 1" NPS
Class 3000 Socket-Weld Forged Steel Couplings - 1" NPS
SKU:FIT-e66713
Enhance your piping system with our Class 3000 Socket-Weld Forged Steel Couplings - durable, precise, and compliant with industry standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Forged Steel Couplings - 1" NPS
$129.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Forged Steel Couplings - 1" NPS
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your piping systems with our Class 3000 Socket-Weld Forged Steel Couplings. Designed for durability, these couplings feature a 34mm socket diameter, precise bore diameter of 26mm to 27mm, and a solid 5mm min. dimension - C. With a weight of 31kg per 100 pieces, these couplings ensure secure connections and optimal performance in high-pressure environments. Meeting strict industry standards, these couplings are ideal for both consumer and institutional needs.

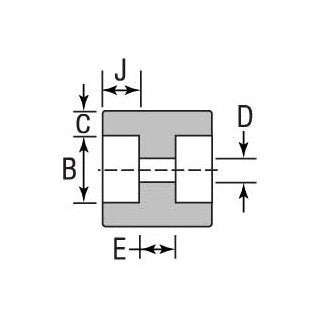

Product Specifications
Specifications Bore Diameter D
26 mm | 27 mm
Specifications Dimension C Min
5 mm
Specifications Dimension E
13.00 mm
Specifications Dn
25
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
1
Specifications Socket Diameter B
34 mm
Specifications Weight100 Pieces
31 kg
