Class 3000 Socket-Weld Forged Steel Tee - 1/8" NPS
Class 3000 Socket-Weld Forged Steel Tee - 1/8" NPS
SKU:FIT-b76e44
High-quality Class 3000 Socket-Weld Forged Steel Tee for secure and leak-free connections in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Forged Steel Tee - 1/8" NPS
$129.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Forged Steel Tee - 1/8" NPS
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

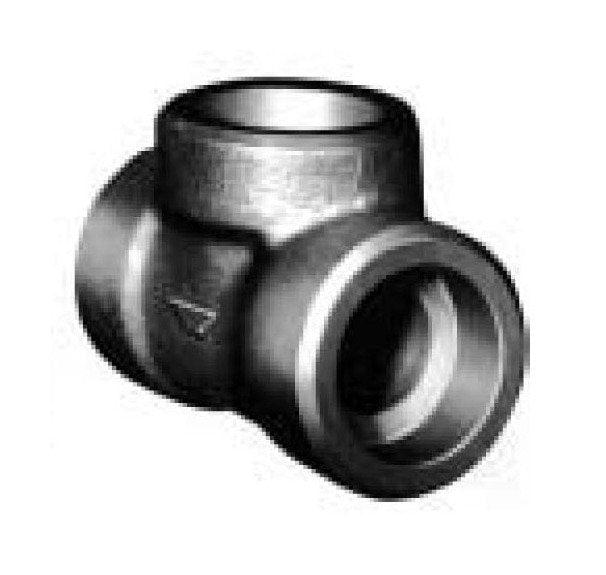

The Class 3000 Socket-Weld Forged Steel Tee is a durable and reliable pipe fitting designed for high-pressure applications. With a Socket Diameter of 11mm and Bore Diameter options of 6mm or 8mm, this tee ensures secure and leak-free connections. Its Minimum Socket Depth of 10mm and sturdy construction make it ideal for industrial settings. Weighing 11kg per 100 pieces, this tee is manufactured to meet stringent ASTM standards for quality and performance.

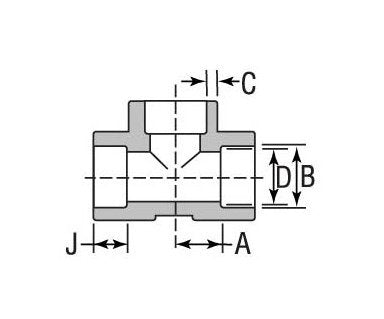

Product Specifications
Specifications Bore Diameter D
6 mm | 8 mm
Specifications Dimension A
11.00 mm
Specifications Dimension C Min
3 mm
Specifications Dn
6
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
1/8
Specifications Socket Diameter B
11 mm
Specifications Weight100 Pieces
11 kg
