Class 3000 Socket-Weld Laterals
Class 3000 Socket-Weld Laterals
SKU:FIT-773efa
Durable Class 3000 forged steel laterals for high-pressure systems. Secure, reliable flow distribution.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Laterals
$299.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Laterals
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

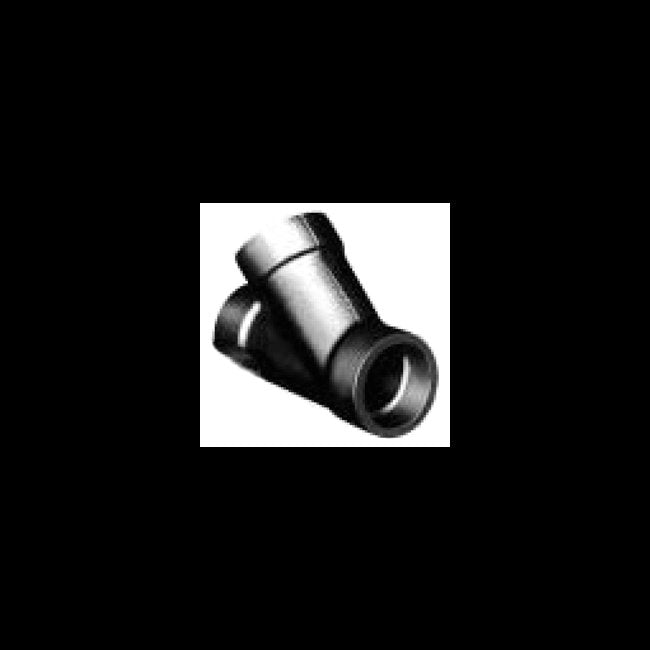

The Class 3000 Socket-Weld Laterals are precision-engineered fittings designed for durability and seamless integration in high-pressure systems. With a nominal size of 1/2 NPS (15 DN) and a sturdy forged steel construction, these laterals offer robust performance. Featuring precise socket diameters, bore diameter options, and a minimum socket depth for secure connections, these fittings ensure reliable flow distribution. Weighing 45 kg per 100 pieces, these laterals are ideal for industrial applications requiring strength and efficiency.

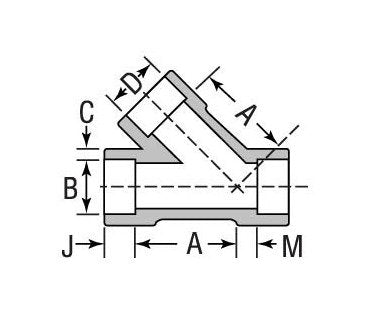

Product Specifications
Specifications Bore Diameter D
15 mm | 17 mm
Specifications Dimension A Nominal
41 mm
Specifications Dimension C Min
4 mm
Specifications Dimension M
10.00 mm
Specifications Dn
15
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
1/2
Specifications Socket Diameter B
22 mm
Specifications Weight100 Pieces
45 kg
