Class 3000 Socket-Weld Reducing Couplings
Class 3000 Socket-Weld Reducing Couplings
SKU:FIT-fd0802
High-quality Class 3000 Socket-Weld Reducing Couplings for efficient high-pressure piping systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Reducing Couplings
$49.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Reducing Couplings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 3000 Socket-Weld Reducing Couplings are precision-engineered fittings designed for seamless integration in high-pressure piping systems. With a nominal pipe size (NPS) of 3/4 and a lowest reduction of 1/8, these forged steel fittings provide reliable performance and durability. The socket diameter, bore diameter, and other critical dimensions meet stringent industry standards, making them ideal for industrial applications where quality and precision are paramount.
Product Specifications

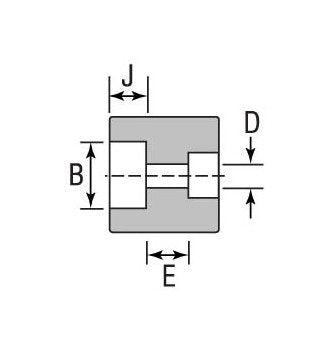

Specifications Bore Diameter D
20 mm | 22 mm
Specifications Dimension C Min
4 mm
Specifications Dimension E
10.00 mm
Specifications Dn
20
Specifications Lowest Reduction Dn
6
Specifications Lowest Reduction Nps
1/8
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
3/4
Specifications Socket Diameter B
27 mm | 28 mm
Specifications Weight100 Pieces
18 kg
