Class 3000 Socket-Weld Steel Laterals
Class 3000 Socket-Weld Steel Laterals
SKU:FIT-dbf64d
High-quality Class 3000 Socket-Weld Steel Laterals for efficient industrial piping systems.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Steel Laterals
$289.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Steel Laterals
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Class 3000 Socket-Weld Steel Laterals are designed for durability and efficiency in industrial piping systems. With a nominal size of 3/4 NPS (20 DN), these forged steel fittings feature precise dimensions, including a minimum socket depth of 13mm and bore diameters of 20mm and 22mm. Weighing 79kg per 100 pieces, these laterals ensure reliable performance and easy installation, meeting the stringent requirements of government and institutional procurement standards.

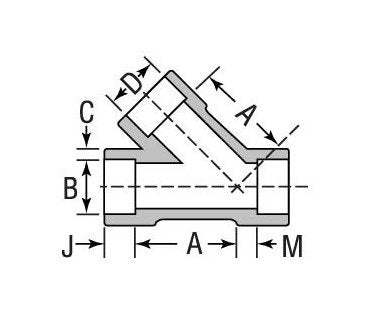

Product Specifications
Specifications Bore Diameter D
20 mm | 22 mm
Specifications Dimension A Nominal
51 mm
Specifications Dimension C Min
4 mm
Specifications Dimension M
11.00 mm
Specifications Dn
20
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
3/4
Specifications Socket Diameter B
27 mm | 28 mm
Specifications Weight100 Pieces
79 kg
