Class 3000 Socket-Weld Tee - 2 1/2"
Class 3000 Socket-Weld Tee - 2 1/2"
SKU:FIT-7854f3
High-quality Class 3000 Socket-Weld Tee - 2 1/2" fitting for reliable, secure connections in high-pressure applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Class 3000 Socket-Weld Tee - 2 1/2"
$129.99
Quantity: 1
Claim Your Seller Account
Class 3000 Socket-Weld Tee - 2 1/2"
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

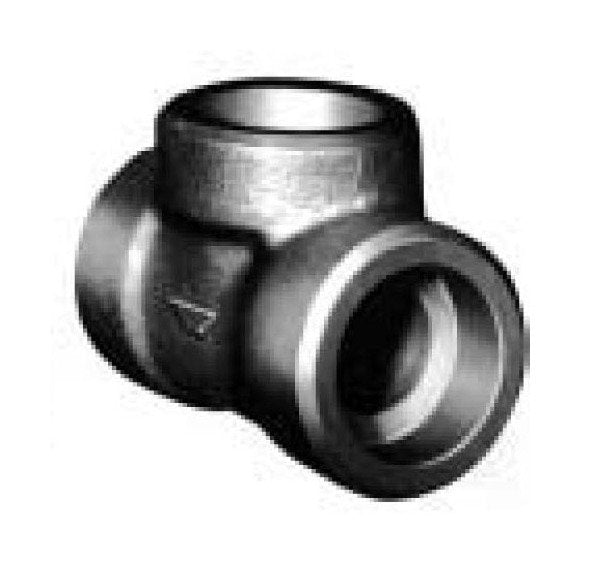

The Class 3000 Socket-Weld Tee is a premium forged steel fitting designed for durability and performance. With a precise Socket Diameter of 74mm and a sturdy Bore Diameter of 61mm | 64mm, this Tee ensures secure connections in high-pressure applications. Its Minimum Socket Depth of 16mm and Weight of 717kg/100 pieces make it ideal for demanding industrial environments. Compliant with federal procurement standards, including GSA requirements and FAR regulations, this Tee guarantees reliability and quality in institutional settings.

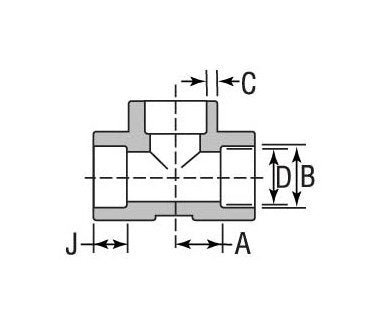

Product Specifications
Specifications Bore Diameter D
61 mm | 64 mm
Specifications Dimension A
41.00 mm
Specifications Dimension C Min
8 mm
Specifications Dn
65
Specifications Minimum Socket Depth J
16 mm
Specifications Nps
2 1/2
Specifications Socket Diameter B
74 mm
Specifications Weight100 Pieces
717 kg
