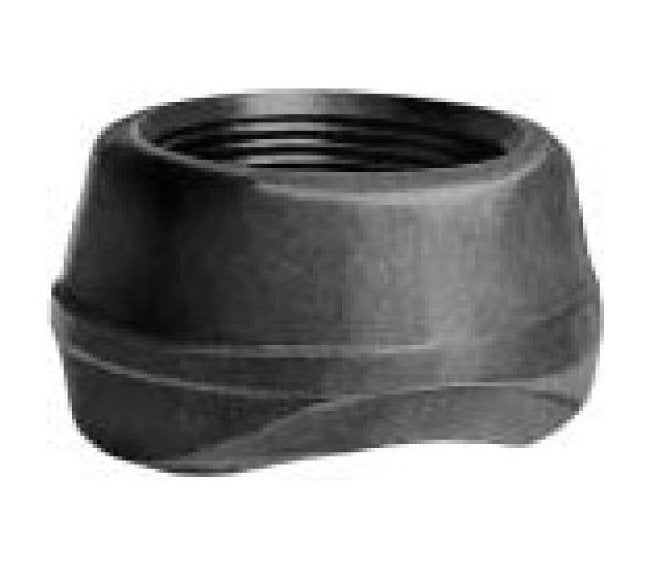

Class 3000 Threaded Anvilets
Class 3000 Threaded Anvilets
SKU:FIT-179c40
Enhance your industrial piping system with Class 3000 Threaded Anvilets. Reliable, leak-free connections for standard and XS pipes.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Class 3000 Threaded Anvilets
$34.99
Quantity: 1
Claim Your Seller Account
Class 3000 Threaded Anvilets
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial piping system with our Class 3000 Threaded Anvilets. These reducing and full-size anvilets are designed to meet the rigorous demands of industrial applications. Suitable for use with both standard and XS pipes, these Class 3000 threaded anvilets ensure secure and leak-free connections. With outlet sizes ranging from 3/4 NPS to 20 DN and compatible with nominal run pipe sizes from 1 to 36 NPS (25 to 900 DN), these anvilets provide versatility and reliability in various pipe installations. Crafted with precision and durability, the dimensions and weight of these anvilets ensure optimal performance and longevity in your piping infrastructure.
Product Specifications
Specifications Class
3000

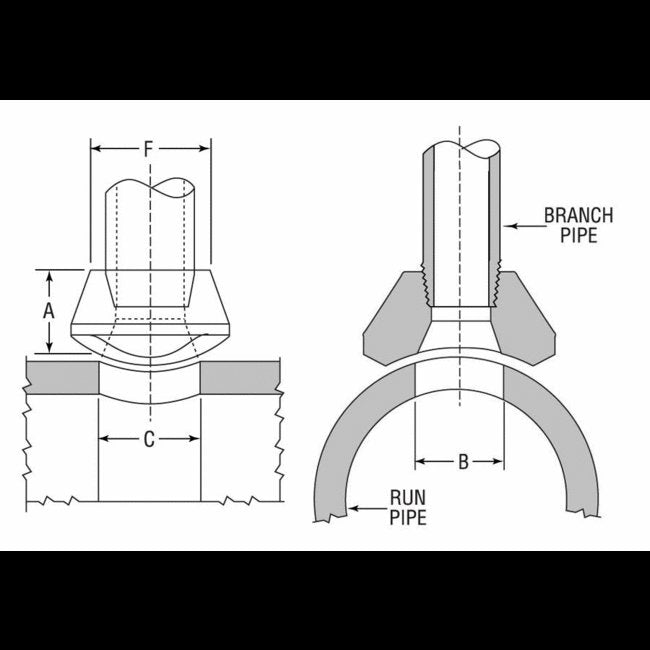

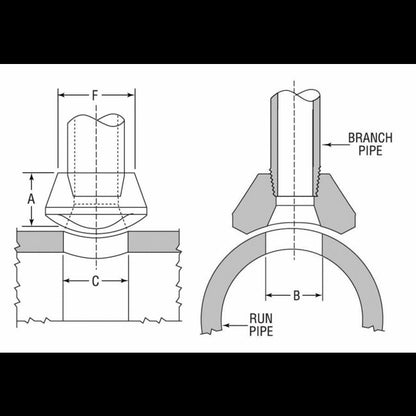

Specifications Dimension A
27.00 mm
Specifications Dimension B
30.00 mm
Specifications Dimension C
30.00 mm
Specifications Dimension F
37.00 mm
Specifications Nominal Run Pipe Size Dn
25 - 900
Specifications Nominal Run Pipe Size Nps
1 - 36
Specifications Outlet Size Dn
20
Specifications Outlet Size Nps
3/4
Specifications Weight
0.19 kg
