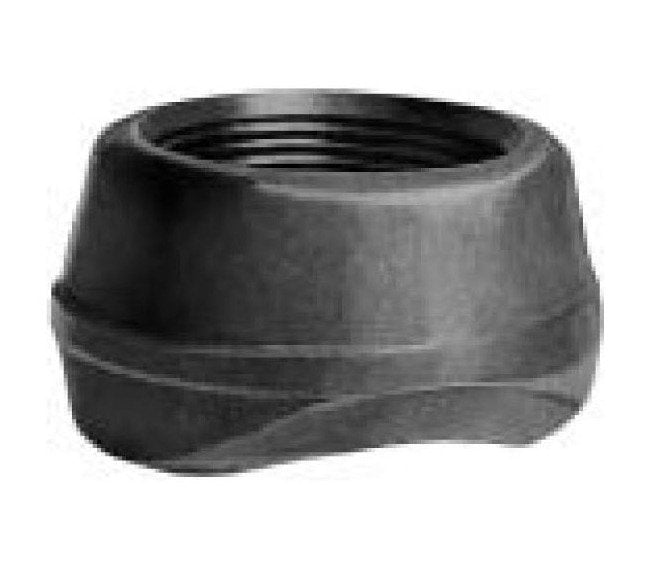

Class 3000 Threaded Anvilets
Class 3000 Threaded Anvilets
SKU:FIT-36e2a4
Versatile Class 3000 Threaded Anvilets for reliable pipe connections in reducing and full-size applications. Compatible with standard and XS pipes.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Class 3000 Threaded Anvilets
$39.99
Quantity: 1
Claim Your Seller Account
Class 3000 Threaded Anvilets
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

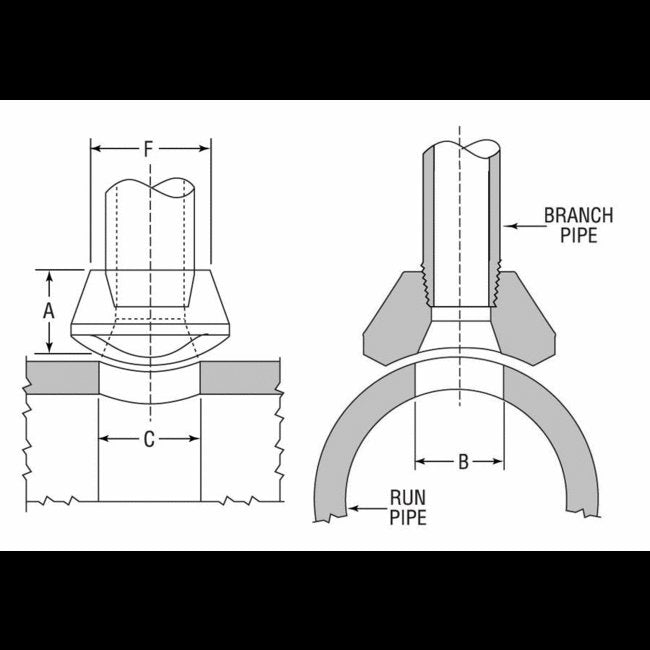

Experience superior performance with our Class 3000 Threaded Anvilets, designed for reducing and full-size applications. Compatible with standard and XS pipes, these malleable fittings ensure a secure and reliable connection. With outlet sizes NPS 4 (DN 100) and precise dimensions, including A: 57.00 mm, B: 103.00 mm, C: 121.00 mm, and F: 130.00 mm, each Anvilet weighs 3.30 kg. Trust in the durability and efficiency of our Threaded Anvilets for your industrial needs.
Product Specifications
Specifications Class
3000
Specifications Dimension A
57.00 mm
Specifications Dimension B
103.00 mm
Specifications Dimension C
121.00 mm
Specifications Dimension F
130.00 mm
Specifications Nominal Run Pipe Size Dn
100
Specifications Nominal Run Pipe Size Nps
4
Specifications Outlet Size Dn
100
Specifications Outlet Size Nps
4
Specifications Weight
3.30 kg
