Class 4.8 Steel Black Oxide Pan Phillips® Drive Full Thread Metric Machine Screw

Name: Class 4.8 Steel Black Oxide Pan Phillips® Drive Full Thread Metric Machine Screw
Brand: Aspen Fasteners
SKU: SCR-bc0d18
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-bc0d18

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

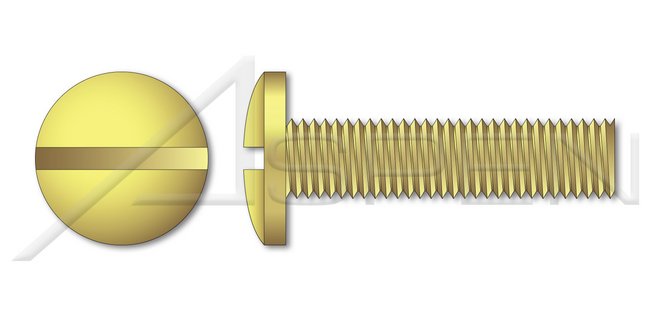

A fully threaded screw with unified machine thread and a blunt point. Usually used with a mating nut or driven into a pre-tapped hole. A large variety of head styles paired with numerous drives types allow for virtually unlimited uses.

Product Specifications

Additional Information

Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut.Pan head screws are also known as raised cheese head screws.Class 4.8 steel is a low or medium carbon steel with a minimum tensile strength of 420N/mm-2 (Mpa).

Specifications Coating

Oxidized

Specifications Coating Color

Black

Specifications Drive Detail

Phillips® Type H

Specifications Drive Style

Cruciform Recess Drive

Specifications Head Style

Pan Head

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 7985A) | International Organization for Standardization (ISO 7045)

Specifications Material

Steel

Specifications Material Grade

Class 4.8 Steel

Specifications System Of Measurement

Metric

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Class 4.8 Steel Black Oxide Pan Phillips® Drive Full Thread Metric Machine Screw
