Class 4500 1/2" NPT Two Piece Ball Valve

Class 4500 1/2" NPT Two Piece Ball Valve

100-bc31b8

High-pressure 1/2" NPT ball valve with ASME B16.34 Class 4500 rating, ideal for critical applications

$89.99
$89.99
Sale

Initiate Order

Class 4500 1/2" NPT Two Piece Ball Valve

Class 4500 1/2" NPT Two Piece Ball Valve

$89.99

Quantity: 1

Claim Your Seller Account

Class 4500 1/2" NPT Two Piece Ball Valve

Class 4500 1/2" NPT Two Piece Ball Valve

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 10000S Series Class 4500 Ball Valve features a 1/2 inch (in) port size with a reduced port configuration, designed for high-pressure applications up to 10000 psi. Compliant with ASME B16.34, ISO 5211, and NACE MR-0175 standards, this valve boasts a floating ball, ISO mounting pad, locking lever handle, and seal welded construction. Pressure tested to API 598, it ensures reliability and performance in critical environments.

Product Specifications

Features Features
Wall Thickness - ASME B16.34 Class 4500Floating BallISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598

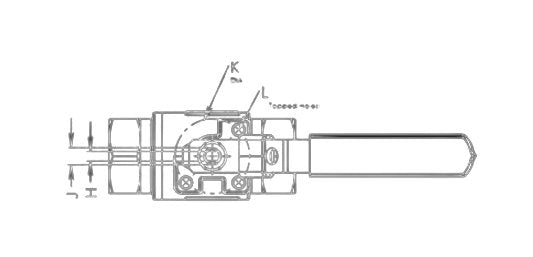

Technical Specs Dimension A
0.38 in
Technical Specs Dimension B
4.0 in
Technical Specs Dimension C
2.22 in
Technical Specs Dimension D
5.00 in
Technical Specs Dimension E
1.63 in
Technical Specs Dimension F
1.06 in
Technical Specs Dimension G
0.15 in
Technical Specs Dimension H
0.195 in
Technical Specs Dimension J
0.311 in
Technical Specs Dimension K
1.417 in
Technical Specs Flow Coefficients Cv
16
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
140 in·lb
Technical Specs Mounting Pad Sizes
F03
Technical Specs Port Configuration
Reduced Port
Technical Specs Port Size
1/2 in
Technical Specs Pressure Rating
10000 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
2.89 kg
