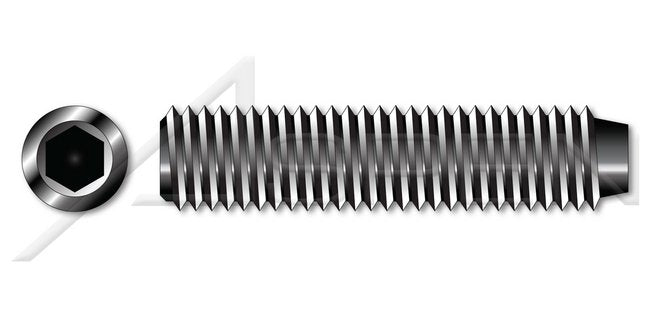

Class 45H Steel Black Cup Point Fine Thread Hex Socket Set Screw

Name: Class 45H Steel Black Cup Point Fine Thread Hex Socket Set Screw
Brand: Aspen Fasteners
SKU: SCR-f1c54d
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-f1c54d

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Set Screws are also known as Grub Screws or Blind Screws. Set Screws are designed to hold an object in place via friction between the point of the screw and the fastened material. Set screws are designed to be used under compressive stress only. A common use of Set screws would be securing gears or pulleys to a shaft.

Product Specifications

Additional Information

Holds an object in place via friction between the point of the screw and the fastened material.Headless set screws are also known as blind screws or grub screws.An internal hex socket drive is also known as an Allen drive.Class 45H steel is an alloy steel, quenched and tempered to Rockwell hardness HRC C45-C53.Set screws are designed to be used under compressive stress only.In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.

Specifications Coating

Uncoated

Specifications Coating Color

Black

Specifications Drive Style

Hex Socket Drive

Specifications Head Style

Headless

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 916) | International Organization for Standardization (ISO 4029)

Specifications Material

Steel

Specifications Material Grade

Class 45H Steel

Specifications Material Processes

Quenched and Tempered

Specifications Point

Cup Point

Specifications System Of Measurement

Metric

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Specifications Thread Pitch

Fine Thread
