Class 6000 Socket-Weld Anvilets
Class 6000 Socket-Weld Anvilets
SKU:FIT-0be8a0
Precision-engineered Class 6000 Socket-Weld Anvilets for secure and leak-free connections in industrial piping systems.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Class 6000 Socket-Weld Anvilets
$59.99
Quantity: 1
Claim Your Seller Account
Class 6000 Socket-Weld Anvilets
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

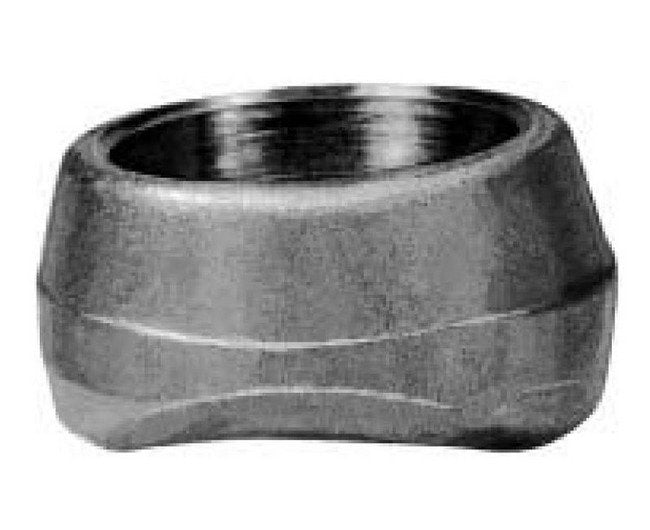

The Class 6000 Socket-Weld Anvilets are precision-engineered fittings designed for secure and leak-free connections in industrial piping systems. With a tolerance of ± 0.06 on sizes 2 1/2 NPS (65 DN) and larger, these Anvilets ensure a perfect fit. Suitable for use with schedule 160 and XXS pipes, these Anvilets offer exceptional strength and durability. The outlet size ranges from 3/4 NPS to 20 DN, accommodating nominal run pipe sizes from 1 to 36 NPS and 25 to 900 DN. Built to meet the demanding requirements of institutional and government buyers, these Anvilets provide reliable performance in high-pressure applications.

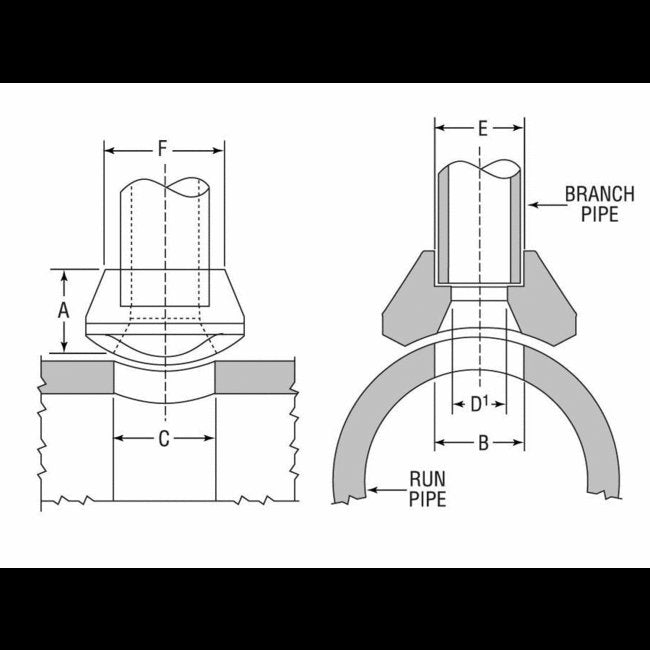

Product Specifications
Specifications Class
6000
Specifications Dimension A
37.00 mm
Specifications Dimension B
25.00 mm
Specifications Dimension C
16.00 mm
Specifications Dimension D 003
27 mm
Specifications Dimension E 001
45 mm
Specifications Dimension F
23.00 mm
Specifications Nominal Run Pipe Size Dn
25 - 900
Specifications Nominal Run Pipe Size Nps
1 - 36
Specifications Outlet Size Dn
20
Specifications Outlet Size Nps
3/4
