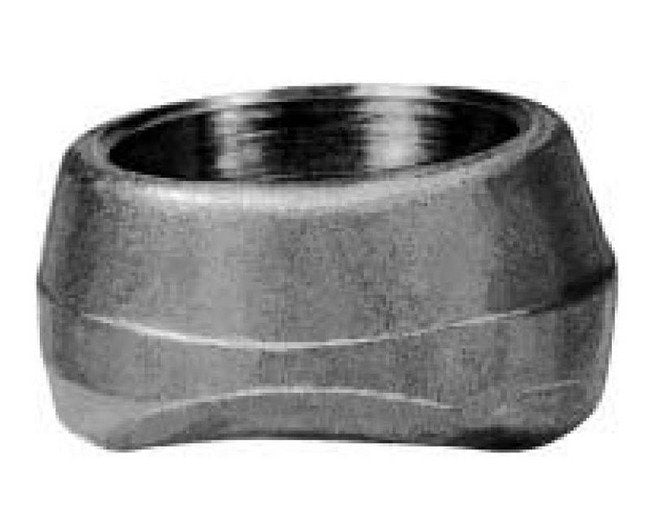

Class 6000 Socket-Weld Anvilets
Class 6000 Socket-Weld Anvilets
SKU:FIT-d7352e
High-quality Class 6000 Socket-Weld Anvilets for secure, leak-free connections in high-pressure applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Class 6000 Socket-Weld Anvilets
$59.99
Quantity: 1
Claim Your Seller Account
Class 6000 Socket-Weld Anvilets
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

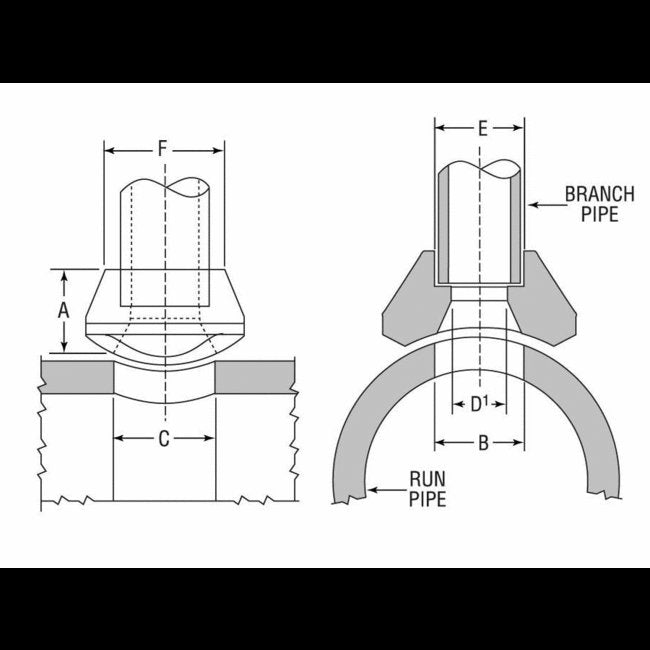

The Class 6000 Socket-Weld Anvilets are precision-engineered fittings designed for high-pressure applications, featuring an outlet size of 2 inches and a nominal run pipe size range from 2 1/2 to 36 inches. With dimensions meeting industry standards, including A (52.00 mm), B (70.00 mm), C (43.00 mm), D (± 0.03) 61 mm, E (± 0.01) 92 mm, and F (147.00 mm), these Anvilets ensure a secure and leak-free connection. Suitable for use with schedule 160 and XXS pipes, these fittings provide durability and reliability in demanding industrial environments.
Product Specifications
Specifications Class
6000
Specifications Dimension A
52.00 mm
Specifications Dimension B
70.00 mm
Specifications Dimension C
43.00 mm
Specifications Dimension D 003
61 mm
Specifications Dimension E 001
92 mm
Specifications Dimension F
147.00 mm
Specifications Nominal Run Pipe Size Dn
65 - 900
Specifications Nominal Run Pipe Size Nps
2 1/2 - 36
Specifications Outlet Size Dn
50
Specifications Outlet Size Nps
2
