Class 6000 Socket-Weld Anvilets
Class 6000 Socket-Weld Anvilets
SKU:FIT-c7c59e
Precision Class 6000 Socket-Weld Anvilets for reliable high-pressure connections in industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Class 6000 Socket-Weld Anvilets
$59.99
Quantity: 1
Claim Your Seller Account
Class 6000 Socket-Weld Anvilets
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

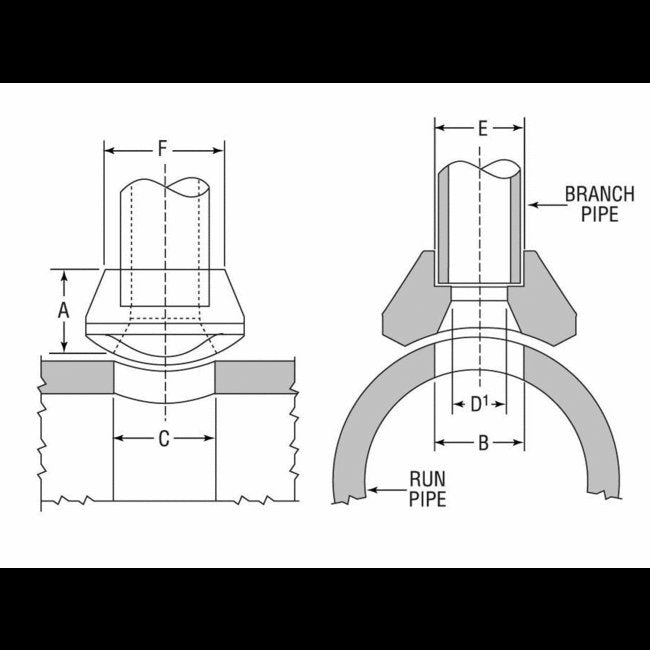

The Class 6000 Socket-Weld Anvilets offer precision engineering with outlet sizes ranging from NPS 1 1/2 to 40 DN and nominal run pipe sizes from 2 to 36 NPS, ensuring compatibility with various applications. With dimensions meeting industry standards, including A: 43.00mm, B: 49.00mm, C: 34.00mm, D: 49mm, E: 76mm, and F: 76.00mm, these anvilets provide a secure socket-weld connection for seamless integration with schedule 160 and XXS pipes. Built to withstand high-pressure environments, these anvilets guarantee reliability and performance in demanding industrial settings.
Product Specifications
Specifications Class
6000
Specifications Dimension A
43.00 mm
Specifications Dimension B
49.00 mm
Specifications Dimension C
34.00 mm
Specifications Dimension D 003
49 mm
Specifications Dimension E 001
76 mm
Specifications Dimension F
76.00 mm
Specifications Nominal Run Pipe Size Dn
50 - 900
Specifications Nominal Run Pipe Size Nps
2 - 36
Specifications Outlet Size Dn
40
Specifications Outlet Size Nps
1 1/2
