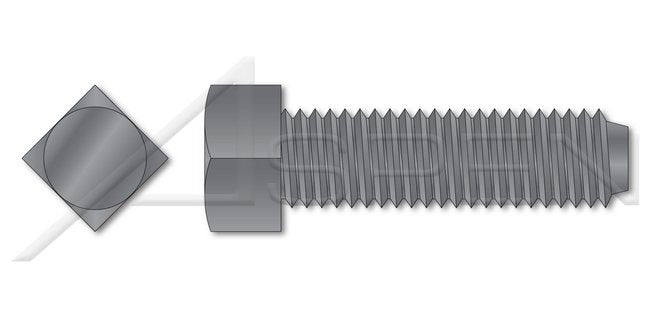

Class 8.8 Steel Plain Square Head Set Screw

Name: Class 8.8 Steel Plain Square Head Set Screw
Brand: Aspen Fasteners
SKU: SCR-a1515d
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-a1515d

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Set Screws are also known as Grub Screws or Blind Screws. Set Screws are designed to hold an object in place via friction between the point of the screw and the fastened material. Set screws are designed to be used under compressive stress only. A common use of Set screws would be securing gears or pulleys to a shaft.

Product Specifications

Additional Information

Holds an object in place via friction between the point of the screw and the fastened material.While similar to set screws with a hex recess drive, the square head allows for a wrench to be used.Square head set screws are also known as grub screws.Class 8.8 steel is a tempered medium carbon steel with a minimum tensile strength of 800/mm-2 (Mpa).Set screws are designed to be used under compressive stress only.

Specifications Coating

Uncoated

Specifications Drive Style

External Square Drive

Specifications Head Style

Square Head

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 479)

Specifications Material

Steel

Specifications Material Grade

Class 8.8 Steel

Specifications Point

Half-Dog Point

Specifications System Of Measurement

Metric

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Class 8.8 Steel Plain Square Head Set Screw
