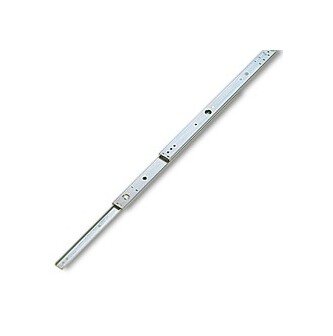

CLB-305 Full Extension with Quick Disconnect Ball Bearing Slide
CLB-305 Full Extension with Quick Disconnect Ball Bearing Slide
SKU:CHA-2f1fcc
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CLB-305 Full Extension with Quick Disconnect Ball Bearing Slide
$49.99
Quantity: 1
Claim Your Seller Account
CLB-305 Full Extension with Quick Disconnect Ball Bearing Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0

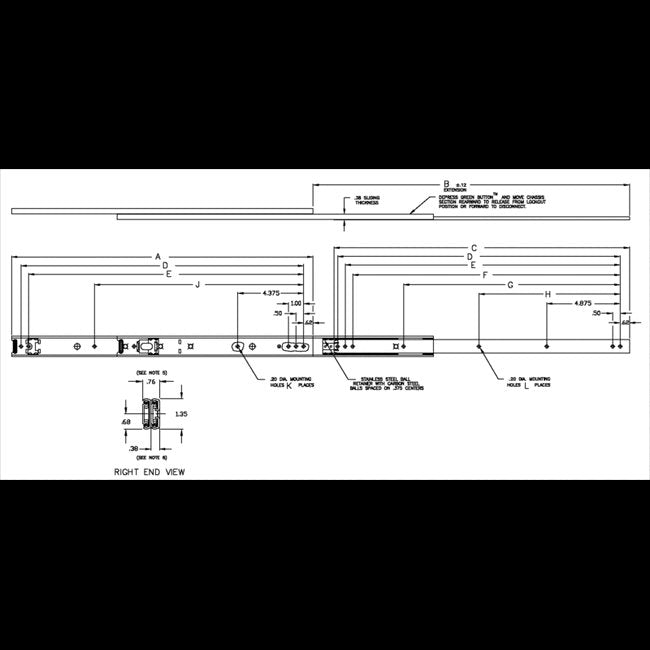

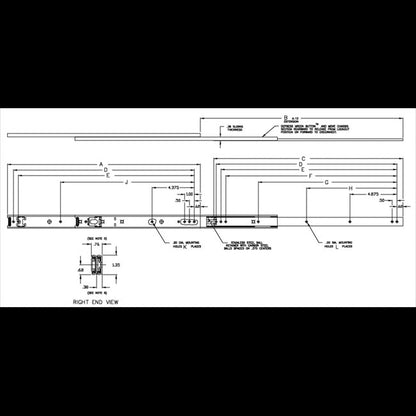

CLB-305 consists of one set of two non-handed slides. Slides are unhanded and can be mounted to the right or left hand side of the cabinet. If ordered individually, a special reference number will be assigned.All slides are supplied with special (0.094" max. head height) #8;-32 x 3/8" Phillips pan head screws and self-locking nuts for mounting one pair of slides. Use only these special screws when mounting through slide member to prevent internal damage to ball retainer. If mounting to cabinet rails see cabinet mounting section for ball bearing slides.CLB-305 has front disconnect feature and locks at full extension. For non-locking see "order" chart.Slide members are made from 14 gauge (0.074) work hardened cold rolled steel.Slide is designed to allow the stationary section of slide to be hidden between the cabinet mounting rails to take advantage of the 0.38" sliding thickness. Recommended slide length is 1.0" less than the rail setting.Slide finish is clear zinc commercial plating.Holes other than those shown may be in part at vendor's option.Load capacity is based on one pair of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities, but are not designed to be operated at capacities greater than those stated.Grease applied to ball bearing slides has a temperature range of -45ºF to 350ºF. However, due to the use of plastic guide and support balls, slide is designed for applications not exceeding 150°F (ambient temperature).Other non-standard options which are available include: special marking, special extensions, special finishes, lock-in, and complete design changes per request. Factory as these options will require a special reference number to assure receipt of specified options.
Specifications Ambient Temperature
150 ºF
Specifications Cold Rolled Steel
14 (0.074) gauge
Specifications Finish
Clear zinc commercial plating
Specifications Forward Extension B
28.00 in
Specifications Gdi Reference
CC7402-00-0270
Specifications Installation Sheet
Installation Sheet
Specifications Mounting Screw Head Height Max
0.094 in
Specifications Options
Automatic Release
Specifications Recommended Slide Length
1.0 in
Specifications Slide Length A
27.00 in
Specifications Sliding Thickness
0.38 in
Specifications Spec Sheets
CLB-305.pdf
Specifications Temperature
-45 to 350 ºF
Specifications Weight Capacity
85 lbs
Specifications Weight Capacity Notes
Load capacity is based on one set of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities but are not designed to be operated at capacities greater than those stated.
