Clear Acrylic Pass-Through Desiccator Cabinet - 1540 Series
Clear Acrylic Pass-Through Desiccator Cabinet - 1540 Series
SKU:154-1d9cd2
Innovative dual-access Clear Acrylic Desiccator Cabinet for controlled storage
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Clear Acrylic Pass-Through Desiccator Cabinet - 1540 Series
$1,899.99
Quantity: 1
Claim Your Seller Account
Clear Acrylic Pass-Through Desiccator Cabinet - 1540 Series
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

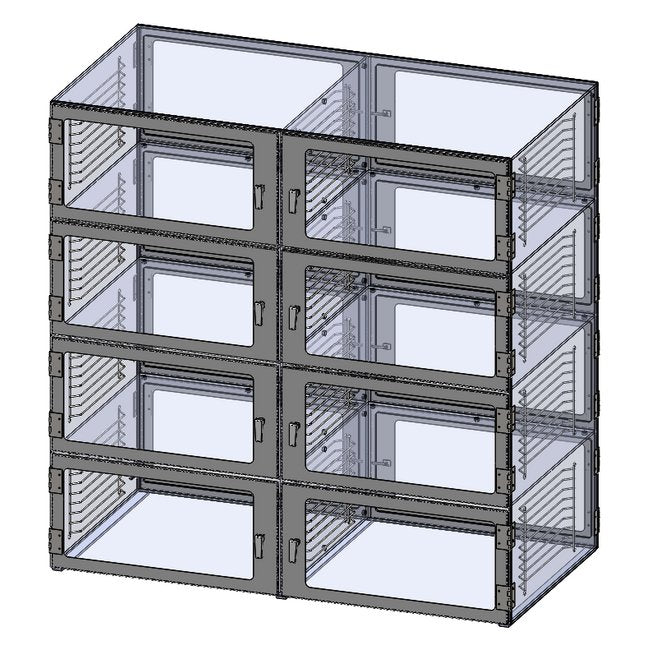

The 1540 Series Clear Acrylic Pass-Through Desiccator Cabinet features a cutting-edge design for dual access from both sides. With 8 chambers, each chamber sized at 24 x 18 x 16 inches, this cabinet offers flexible compartment options for maintaining a controlled environment. Made of durable 1/4-inch clear acrylic, it includes options like a Gas-in Port, Pressure Relief Valve, and Hygro-Thermometer. Ideal for cleanroom applications, this cabinet ensures secure storage and easy access for general-purpose processing.
Product Specifications
Additional Information Additional Information
Stainless steel door frame and door hinge.Stainless steel wire rack for shelving. A pair of wire racks is needed for each chamber and are optional if there are no shelves.Metal lift-and-turn latch.Single-piece Santoprene seal.
Applications 0
Pass-Through Chambers
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Perforated stainless steel, acrylic or static-dissipative PVC shelves. (Wire racks are required for shelf placement.)Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.Chambers can either be interconnected using a perforated chamber divider or isolated to maintain a controlled environment.
Specifications Chamber Size
24 x 18 x 16 in
Specifications Door Opening Height
14.1875 in
Specifications Door Opening Width
22.375 in
Specifications Internal Usable Space Depth
16.125 in
Specifications Internal Usable Space Height
15.75 in
Specifications Material
Clear Acrylic
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
8
Specifications Overall Depth
18 in
Specifications Overall Height
64 in
Specifications Overall Width
48 in
Specifications Shelf Usable Space Depth
15.5 in
Specifications Shelf Usable Space Width
21.5 in
