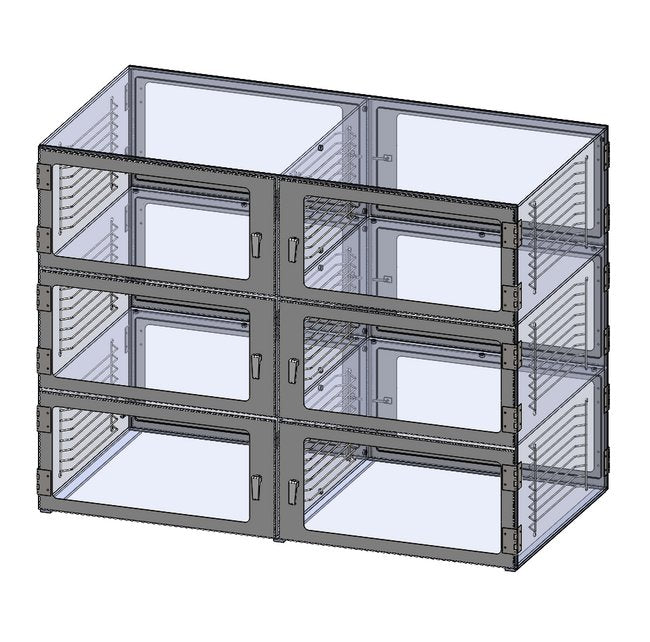

Clear Acrylic Pass-Through Desiccator Cabinet - 6 Chamber, 18 Inch Depth
Clear Acrylic Pass-Through Desiccator Cabinet - 6 Chamber, 18 Inch Depth
SKU:SIX-91008e
Explore our Clear Acrylic 6-Chamber Desiccator Cabinet for controlled laboratory environments.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Clear Acrylic Pass-Through Desiccator Cabinet - 6 Chamber, 18 Inch Depth
$1,799.99
Quantity: 1
Claim Your Seller Account
Clear Acrylic Pass-Through Desiccator Cabinet - 6 Chamber, 18 Inch Depth
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Clear Acrylic Pass-Through Desiccator Cabinet features six chambers with an 18-inch depth. It offers a total height and width of 48 inches, providing ample internal usable space for controlled environments. With front and rear access doors, stainless steel components, and optional accessories like gas-in ports and purge control units, this cabinet is designed for precision and reliability in pass-through operations. Ideal for laboratories, research facilities, and government institutions requiring stringent environmental control.
Product Specifications
Additional Information Additional Information
Front and rear access doors allow for pass-through operations.Stainless steel door frame and door hinge.Stainless steel wire rack for shelving. A pair of wire racks is needed for each chamber and are optional if there are no shelves.Metal lift-and-turn latch.Single-piece Santoprene seal.
Applications 0
Pass-Through Chambers
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Perforated stainless steel, acrylic or static-dissipative PVC shelves. (Wire racks are required for shelf placement.)Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.Chambers can either be interconnected using a perforated chamber divider or isolated to maintain a controlled environment.
Specifications Chamber Depth
18 in
Specifications Chamber Height
16 in
Specifications Chamber Width
24 in
Specifications Door Opening Height
14.1875 in
Specifications Door Opening Width
22.375 in
Specifications Internal Usable Space Depth
16.125 in
Specifications Internal Usable Space Height
15.75 in
Specifications Material
Clear Acrylic
Specifications Number Of Chambers
6
Specifications Overall Depth
18 in
Specifications Overall Height
48 in
Specifications Overall Width
48 in
Specifications Usable Area Shelf Space Depth
15.5 in
Specifications Usable Area Shelf Space Width
21.5 in
