Clear Acrylic Ten Chamber Pass-Through Desiccator Cabinet - 1540 Series

Clear Acrylic Ten Chamber Pass-Through Desiccator Cabinet - 1540 Series

154-186eae

Get efficient dual-access storage with the 1540 Series Clear Acrylic Ten Chamber Desiccator Cabinet.

$2,399.99
$2,399.99
Sale

Initiate Order

Clear Acrylic Ten Chamber Pass-Through Desiccator Cabinet - 1540 Series

Clear Acrylic Ten Chamber Pass-Through Desiccator Cabinet - 1540 Series

$2,399.99

Quantity: 1

Claim Your Seller Account

Clear Acrylic Ten Chamber Pass-Through Desiccator Cabinet - 1540 Series

Clear Acrylic Ten Chamber Pass-Through Desiccator Cabinet - 1540 Series

$2,399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

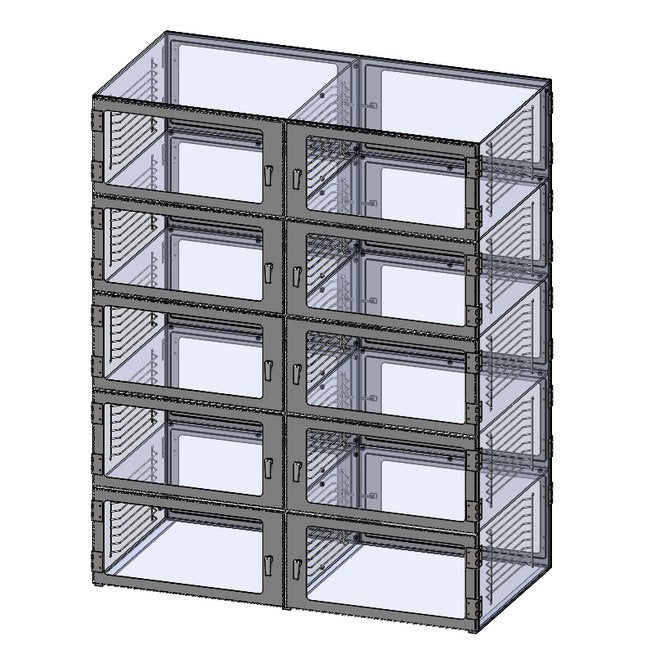

The 1540 Series 24-inch overall depth clear acrylic ten chamber pass-through desiccator cabinet offers innovative dual-access design for seamless material retrieval from both sides. Ideal for cleanroom or inventory room installation, these cabinets boast sturdy clear acrylic construction with stainless steel components and a Santoprene seal. Equipped with front and rear access doors, stainless steel wire racks for shelving, and optional add-ons like gas-in ports and humidity control units. This cabinet is a versatile solution for controlled environments, meeting general-purpose processing needs while ensuring durability and functionality.

Product Specifications

Additional Information Additional Information
Front and rear access doors allow for pass-through operations.Stainless steel door frame and door hinge.Stainless steel wire rack for shelving. A pair of wire racks is needed for each chamber and are optional if there are no shelves.Metal lift-and-turn latch.Single-piece Santoprene seal.
Applications 0
Pass-Through Chambers
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Perforated stainless steel, acrylic or static-dissipative PVC shelves. (Wire racks are required for shelf placement.)Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.Chambers can either be interconnected using a perforated chamber divider or isolated to maintain a controlled environment.
Specifications Access Door
Two Sides
Specifications Chamber Size
24 x 24 x 12 in
Specifications Door Opening Height
10.1875 in
Specifications Door Opening Width
22.375 in
Specifications Internal Usable Space Depth
22.125 in
Specifications Internal Usable Space Height
11.75 in
Specifications Material
Clear Acrylic
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
10
Specifications Overall Depth
24 in
Specifications Overall Height
60 in
Specifications Overall Width
48 in
Specifications Shelf Usable Space Depth
21.5 in
Specifications Shelf Usable Space Width
21.5 in
