Clear Cast Acrylic Tube - High Clarity & Impact Resistance - 6ft Length
Clear Cast Acrylic Tube - High Clarity & Impact Resistance - 6ft Length
SKU:SHA-fb5882
High clarity and impact resistance in a versatile acrylic tube for various applications.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Clear Cast Acrylic Tube - High Clarity & Impact Resistance - 6ft Length
$42.99
Quantity: 1
Claim Your Seller Account
Clear Cast Acrylic Tube - High Clarity & Impact Resistance - 6ft Length
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

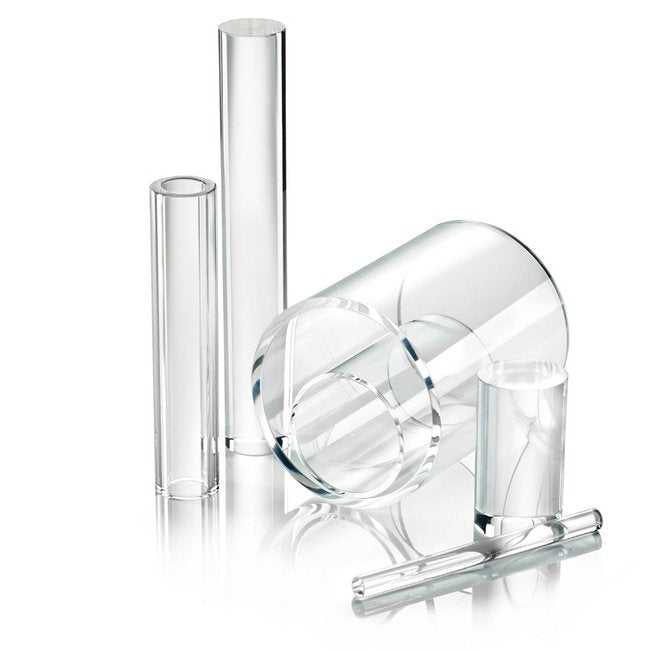

The Clear Cast Acrylic Tube offers exceptional optical clarity, superior light transmission, and impressive impact resistance. With a wall thickness of 0.125 inches and an outside diameter of 3.500 inches, this acrylic tube is ideal for various applications requiring durability and transparency. Its properties include weather resistance, chemical resistance, easy cleaning, and a smooth surface. Whether for display cases, architectural glazing, or outdoor signs, this tube is a reliable choice. Manufactured using the cell cast process, this tube combines the clarity of glass with half the weight and four times the impact resistance. Easily fabricated and shatter-resistant, this acrylic tube is a versatile and long-lasting solution.
Product Specifications
Manufacturing Processes 0
There are four manufacturing processes that produce acrylic sheet : cell cast, continuous cast, continuously manufactured, and extruded. Each process yields acrylic sheet products with specific characteristics at varying costs. In addition, all types are available with value-added features such as ultra-violet filtering or glare reduction.CELL CASTThis type of acrylic sheet is made by pouring a methyl methacrylate mixture between two lites (plates) of glass, giving the sheet a smooth, glass-like surface. Cell cast sheets are made one by one and cured in ovens. There can be slight inconsistencies in the thickness of the sheet from one end to the other because of the contraction and weight of the material during the curing process. Cell cast acrylic provides the clarity of glass at half the weight and four times the impact resistance. Cell cast acyrlic has better mechanical properties than the other types of acrylic, making it easier to machine and thermoform.CONTINUOUS CASTThis manufacturing method for continuous cast utilizes the same material as cell cast, with the material poured between two stainless steel conveyor belts. Less expensive than cell cast, it offers more uniform thickness, but less clarity.CONTINUOUSLY MANUFACTUREDAn economically priced acrylic sheet with optical properties close to cell cast and the most uniform thickness of all four manufacturing methods. The manufacturing process involves feeding polymethylmethacrylate pellets into one end of an extruder. The pellets are heated to liquid, extruded through a die for an exact thickness, then laid on highly polished rolls to change from a liquid state to a solid state. The polished rolls simulate the smoothness of glass, resulting in its high-grade optical properties.EXTRUDEDThe manufacturing method is like continuously manufactured sheeting, except the melted liquid is pulled out of the die at a given rate. The least expensive of the acrylic sheets, physical properties, optics and thickness are not as consistent as in other methods of manufacturing.
Properties Uses 0
Acrylic materials have an unusual combination of properties, outstanding weather resistance, brilliant clarity, âlight-pipingâ and âedge-lightingâ qualities, chemical resistance, smooth, easy clean surface, and ease of forming and machining. Compared to all other types of transparent thermoplastics, acrylic sheet has outstanding resistance to the damaging effects of sunlight and outdoor weathering. These desirable properties of acrylic sheet account for its wide acceptance for varied end uses such as : Boat Windshields.Commercial Aircraft Windows.Display Cases.Skylights.Architectural Glazing.Bullet-Resistant Glazing.Sneeze Guards.Machine Windows.Outdoor / Lighted Signs.P.O.P. Displays.Pediatric Incubators.Transparent Tanks.Lighting Diffusers & Lenses.Transparent Machine Parts.Acrylics are easily sawed, drilled, milled, engraved, and finished with sharp carbide tipped tools. Cut surfaces may be readily sanded and polished. They are also readily thermoformed at low temperatures. Solvent cementing of of properly fitted parts produces a strong, invisible joint.
Specifications Maximum Length
6 ft
Specifications Outside Diameter
3.500 in
Specifications Wall Thickness
0.125 in
