Clear Silicone Flange Cap - FC 100-0500 - Pack of 500

Name: Clear Silicone Flange Cap - FC 100-0500 - Pack of 500
Brand: Custom Fabricating & Supplies
SKU: SIL-37674f
Price: 69.99 USD
Availability: OutOfStock

SKU:SIL-37674f

High-quality Clear Silicone Flange Cap for industrial applications. Temperature rated up to 600°F, reusable, and color-coded for easy identification.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

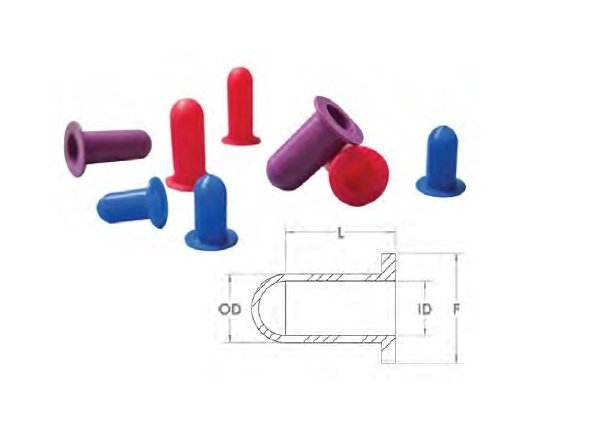

The Clear Silicone Flange Cap FC 100-0500 is designed with precise specifications including an Inner Diameter of 0.100 Inch, Outer Diameter of 0.225 Inch, and Flange of 0.5 Inch, making it ideal for masking studs and pems with a perimeter for grounding. With a high temperature rating of 600 °F/315 °C, this cap is perfect for various industrial applications such as powder coating, E-coating, wet painting, anodizing, and plating. Its flexible material allows the cap to conform to irregular shapes, while its color-coded design ensures easy identification and reusability.

Product Specifications

Specifications Color

Clear

Specifications Features

Temperature Rating 600 Â°F/315 Â°C Recommended for Masking Studs and Pems with a Perimeter for Grounding Flexible Material Allows Cap to Conform to Irregular Shapes May be Inverted as a Plug Top of Cap is Rounded, not Flat Color Coded for Easy Identification and Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating

Specifications Flange

0.5 Inch | 12.70 mm

Specifications Inner Diameter Id

0.100 Inch | 2.54 mm

Specifications Length

1.000 Inch | 25.40 mm

Specifications Outer Diameter Od

0.225 Inch | 5.72 mm

Specifications Quantitybag

500
