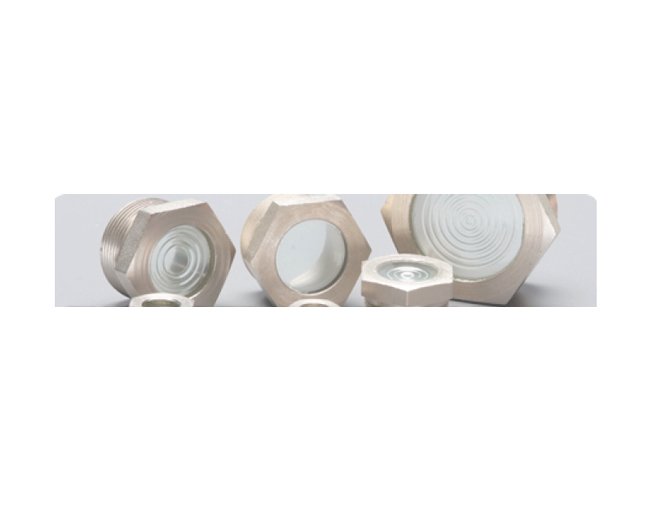

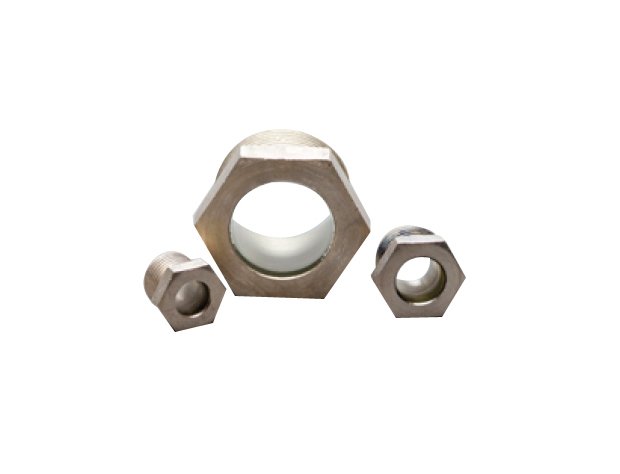

Clear Threaded Sight Glass - 1/2 - 14 NPT, Nickel Plated
Clear Threaded Sight Glass - 1/2 - 14 NPT, Nickel Plated
SKU:SIG-8fb21e
Enhance liquid level visibility with our high-pressure Clear Threaded Sight Glass. Ideal for power transmissions, gear boxes, pumps, and more.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Clear Threaded Sight Glass - 1/2 - 14 NPT, Nickel Plated
$34.99
Quantity: 1
Claim Your Seller Account
Clear Threaded Sight Glass - 1/2 - 14 NPT, Nickel Plated
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-tier visibility with our hermetically sealed Clear Threaded Sight Glass, featuring a 0.562 inch lens diameter, 25/32 inch length, and 15/16 inch hex size. Designed for high-pressure environments with a design pressure of 3500 psig and a maximum operating temperature of 500°F, this sight glass is ideal for liquid level monitoring in power transmissions, gear boxes, reservoirs, pumps, and more. Trust in its nickel-plated finish for durability and precision. Contact our sales department for bulk inquiries.
Product Specifications
Applications 0
Power TransmissionsGear BoxesReservoirsPumps etc
Note For Design Pressure 0
Actual working pressure to which these units are subjected should be chosen by the user to assure a proper margin of safety. Maximum operating temperature 500 ºF
Specifications Design Pressure
3500 psig
Specifications Finish
Nickel Plated
Specifications Hex Size
15/16 in
Specifications Length
25/32 in
Specifications Lens Diameter
0.562 in
Specifications Maximum Operating Temperature
500 ºF
Specifications Thread Size Npt
1/2 - 14
