Clevis Head Innerduct Pulling Eyes - 1-1/2 Inch
Clevis Head Innerduct Pulling Eyes - 1-1/2 Inch
SKU:PUL-bdfa6f
Clevis Head Innerduct Pulling Eyes for secure attachment to multiple pulling harnesses, ensuring a reliable grip within innerducts.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Clevis Head Innerduct Pulling Eyes - 1-1/2 Inch
$29.99
Quantity: 1
Claim Your Seller Account
Clevis Head Innerduct Pulling Eyes - 1-1/2 Inch
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

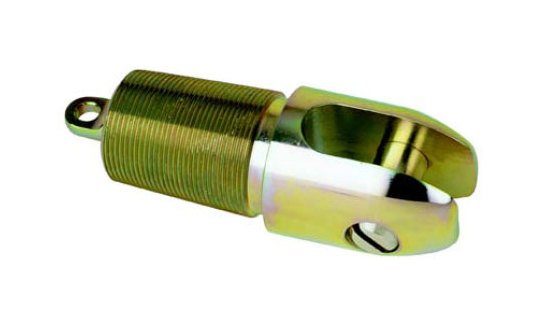

The Clevis Head Innerduct Pulling Eyes with tapered threads and a slotted head design featuring a clevis pin offer a secure attachment to multiple pulling harness leg ends. Engineered to withstand high pulling tensions, these pulling eyes ensure a reliable grip within innerducts. By accurately sizing and installing them, these pulling eyes prevent premature dislodgement, aligning with innerduct manufacturers' recommendations. Determine the correct size by matching the innerduct's inside diameter (I.D.) to the specified range. Compatible with Condux multiple pulling harnesses, these pulling eyes streamline installation processes with precision and durability.

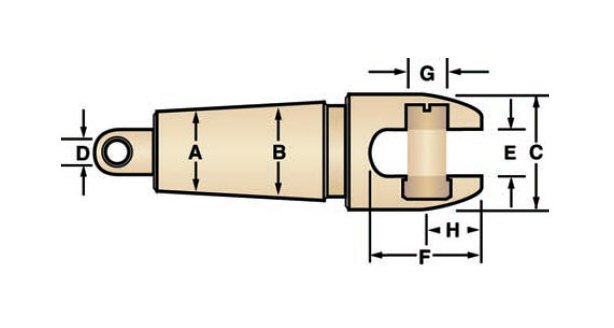

Product Specifications
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.34 to 1.50
Specifications Innerduct Id Range A To B Mm
34 to 38
Specifications Max Od C In
1.88
Specifications Max Od C Mm
48
Specifications Nom Size In
1-1/2
Specifications Nom Size Mm
38
Specifications Note
Will fit all Condux multiple pulling harnesses.
Specifications Pin Center H In
0.81
Specifications Pin Center H Mm
21
Specifications Pin Diameter G In
0.63
Specifications Pin Diameter G Mm
16
Specifications Slot Depth F In
1.88
Specifications Slot Depth F Mm
48
Specifications Slot Width E In
0.75
Specifications Slot Width E Mm
19
