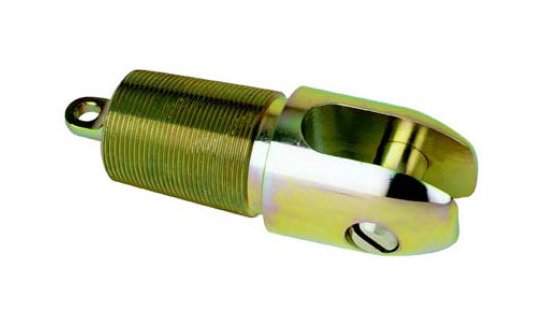

Clevis Head Innerduct Pulling Eyes - 1-1/2" Nominal Size
Clevis Head Innerduct Pulling Eyes - 1-1/2" Nominal Size
SKU:CON-0173ff
Securely attach innerducts for efficient cable pulling operations with Clevis Head Pulling Eyes - 1-1/2" Nominal Size.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Clevis Head Innerduct Pulling Eyes - 1-1/2" Nominal Size
$29.99
Quantity: 1
Claim Your Seller Account
Clevis Head Innerduct Pulling Eyes - 1-1/2" Nominal Size
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Clevis Head Innerduct Pulling Eyes are designed with tapered threads and a slotted head featuring a clevis pin for direct attachment to multiple pulling harness legs. These pulling eyes ensure secure attachment to innerducts, withstanding extreme pulling tensions while meeting innerduct manufacturer recommendations. To select the right size, measure the innerduct's inside diameter to ensure compatibility. With specifications like 1-1/2" Nominal Size, 38-41mm Innerduct I.D. Range, and 16mm Pin Diameter, this product is engineered for reliable and efficient cable pulling operations.

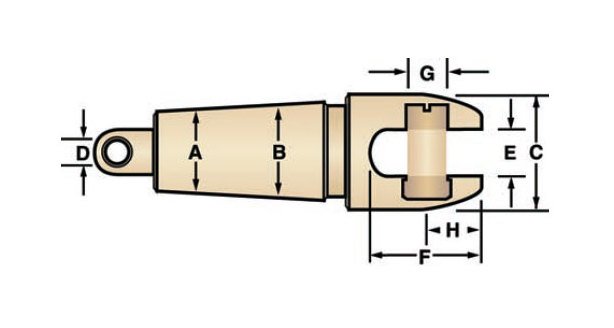

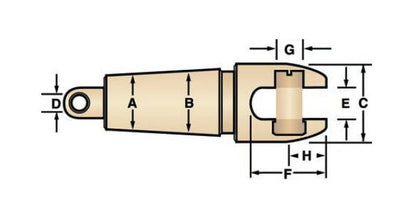

Product Specifications
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.50 to 1.62
Specifications Innerduct Id Range A To B Mm
38 to 41
Specifications Max Od C In
2.00
Specifications Max Od C Mm
51
Specifications Nom Size In
1-1/2
Specifications Nom Size Mm
38
Specifications Note
Will fit all Condux multiple pulling harnesses.
Specifications Pin Center H In
0.72
Specifications Pin Center H Mm
18
Specifications Pin Diameter G In
0.63
Specifications Pin Diameter G Mm
16
Specifications Slot Depth F In
1.78
Specifications Slot Depth F Mm
45
Specifications Slot Width E In
0.75
Specifications Slot Width E Mm
19
