Clevis Head Innerduct Pulling Eyes 3/4"
Clevis Head Innerduct Pulling Eyes 3/4"
SKU:PUL-58b626
Securely attach Clevis Head Pulling Eyes for innerducts within specified diameter range to prevent pullouts under high tensions.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Clevis Head Innerduct Pulling Eyes 3/4"
$24.99
Quantity: 1
Claim Your Seller Account
Clevis Head Innerduct Pulling Eyes 3/4"
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

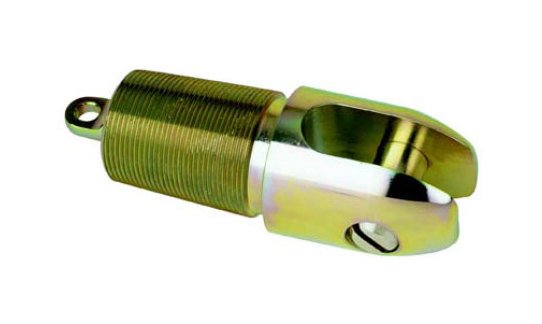

The Clevis Head Innerduct Pulling Eyes 3/4" are engineered with tapered threads and a slotted head design featuring a clevis pin for secure attachment to multiple pulling harnesses. Designed to withstand high pulling tensions, these pulling eyes ensure a reliable grip within innerducts with I.D. ranging from 0.68 to 0.81 inches. Easily determine the correct size using the provided specifications, ensuring a snug fit to prevent pullouts and exceed innerduct manufacturers' recommendations.

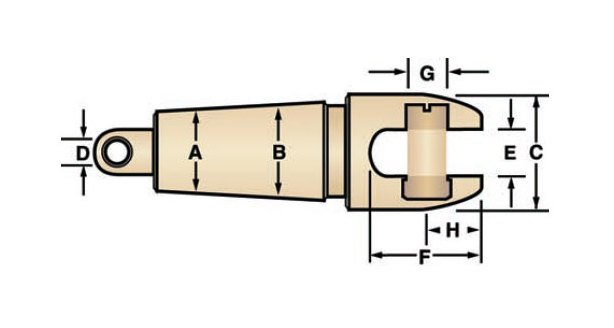

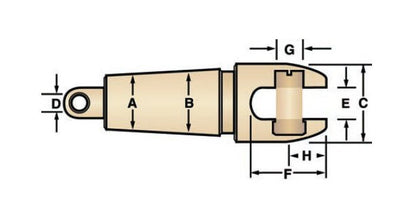

Product Specifications
Specifications Hole Diameter D In
0.25
Specifications Hole Diameter D Mm
6
Specifications Innerduct Id Range A To B In
0.68 to 0.81
Specifications Innerduct Id Range A To B Mm
17 to 21
Specifications Max Od C In
1.13
Specifications Max Od C Mm
29
Specifications Nom Size In
3/4
Specifications Nom Size Mm
19
Specifications Note
Will fit the 1/8" and 1/4" cable pulling harnesses only.
Specifications Pin Center H In
0.53
Specifications Pin Center H Mm
13
Specifications Pin Diameter G In
0.31
Specifications Pin Diameter G Mm
8
Specifications Slot Depth F In
1.06
Specifications Slot Depth F Mm
27
Specifications Slot Width E In
0.38
Specifications Slot Width E Mm
10
