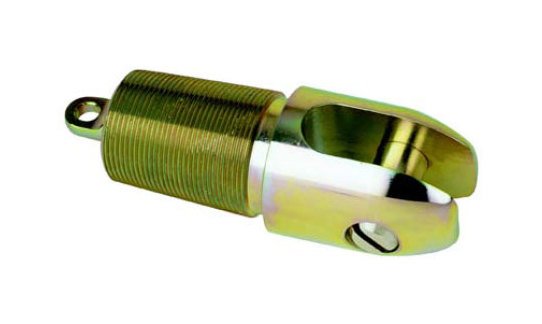

Enhance your innerduct pulling efficiency with Clevis Head Innerduct Pulling Eyes. Featuring tapered threads and a slotted head with clevis pin, these pulling eyes offer direct attachment to multiple pulling harness leg ends. Designed to withstand high pulling tensions within innerducts, ensuring secure installation. Determine the right size with innerduct I.D. measurements between 0.68-0.81 inches. Compatible with 1/8" and 1/4" cable pulling harnesses.

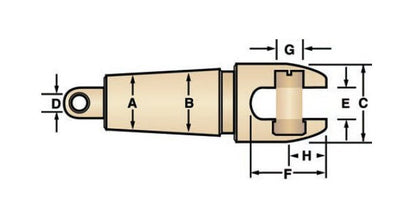

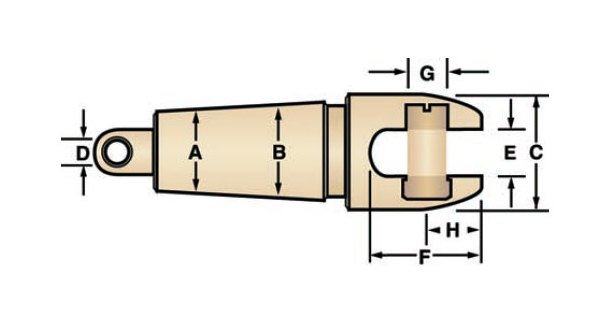

Product Specifications
Specifications Hole Diameter D In
0.25
Specifications Hole Diameter D Mm
6
Specifications Innerduct Id Range A To B In
0.68 to 0.81
Specifications Innerduct Id Range A To B Mm
17 to 21
Specifications Max Od C In
1.13
Specifications Max Od C Mm
29
Specifications Nom Size In
3/4
Specifications Nom Size Mm
19
Specifications Note
Will fit the 1/8" and 1/4" cable pulling harnesses only.
Specifications Pin Center H In
0.53
Specifications Pin Center H Mm
13
Specifications Pin Diameter G In
0.31
Specifications Pin Diameter G Mm
8
Specifications Slot Depth F In
1.06
Specifications Slot Depth F Mm
27
Specifications Slot Width E In
0.38
Specifications Slot Width E Mm
10
