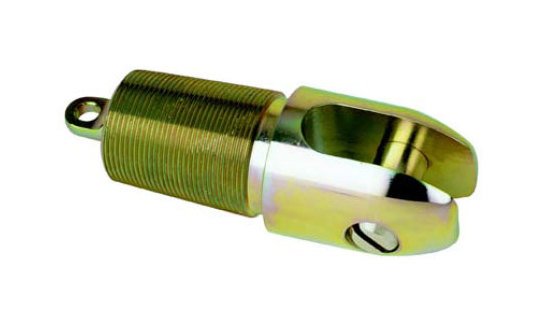

Clevis Head Innerduct Pulling Eyes for Multiple Harness Leg Ends
Clevis Head Innerduct Pulling Eyes for Multiple Harness Leg Ends
SKU:PUL-a137fa
Securely attach Clevis Head Innerduct Pulling Eyes to multiple harness leg ends for reliable and safe innerduct installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Clevis Head Innerduct Pulling Eyes for Multiple Harness Leg Ends
$29.99
Quantity: 1
Claim Your Seller Account
Clevis Head Innerduct Pulling Eyes for Multiple Harness Leg Ends
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your innerduct pulling capability with our Clevis Head Innerduct Pulling Eyes. Featuring tapered threads and a slotted head with clevis pin, these pulling eyes ensure secure attachment to various multiple pulling harness leg ends. Designed to withstand high pulling tensions, they provide a reliable solution for innerduct installations. Determine the correct size based on the innerduct inside diameter range, ensuring a perfect fit that meets industry standards and ensures safety during installations.

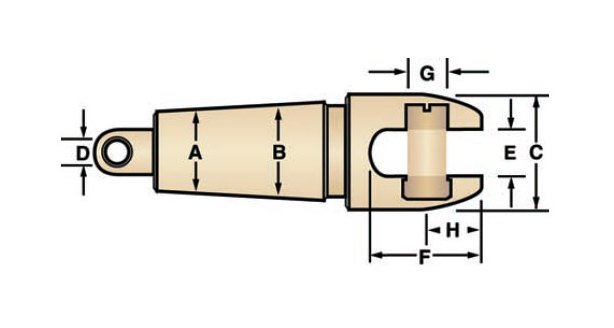

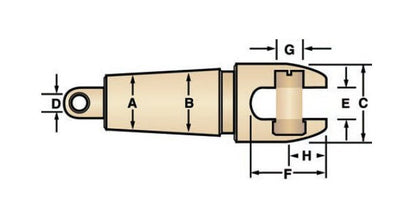

Product Specifications
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.96 to 2.09
Specifications Innerduct Id Range A To B Mm
50 to 53
Specifications Max Od C In
2.50
Specifications Max Od C Mm
64
Specifications Nom Size In
2
Specifications Nom Size Mm
51
Specifications Note
Will fit the 3/8 " and 1/2” cable pulling harnesses only.
Specifications Pin Center H In
1.25
Specifications Pin Center H Mm
32
Specifications Pin Diameter G In
0.88
Specifications Pin Diameter G Mm
22
Specifications Slot Depth F In
2.80
Specifications Slot Depth F Mm
71
Specifications Slot Width E In
1.00
Specifications Slot Width E Mm
25
