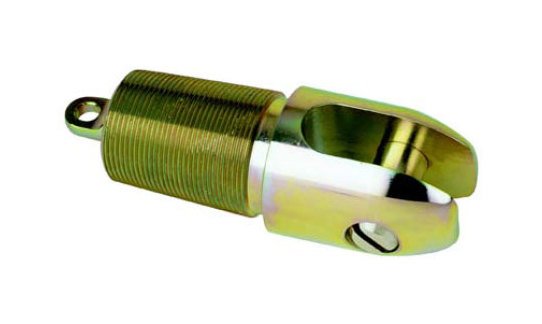

Clevis Head Innerduct Pulling Eyes - Threaded Slotted Clevis Pin Pulling Eyes
Clevis Head Innerduct Pulling Eyes - Threaded Slotted Clevis Pin Pulling Eyes
SKU:PUL-96a612
Enhance your innerduct pulling efficiency with Clevis Head Innerduct Pulling Eyes - threaded for secure attachment and precise performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Clevis Head Innerduct Pulling Eyes - Threaded Slotted Clevis Pin Pulling Eyes
$29.99
Quantity: 1
Claim Your Seller Account
Clevis Head Innerduct Pulling Eyes - Threaded Slotted Clevis Pin Pulling Eyes
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your innerduct pulling operation with our Clevis Head Innerduct Pulling Eyes. Designed with the same tapered threads as standard pulling eyes, this version features a slotted head with a clevis pin for direct attachment to multiple pulling harness leg ends. With an innerduct I.D. range of 2.06 to 2.18 inches, maximum O.D. of 2.50 inches, and precision slot dimensions, these pulling eyes ensure secure installation without premature disengagement. Trusted by innerduct manufacturers, these pulling eyes exceed industry standards for durability and reliability.

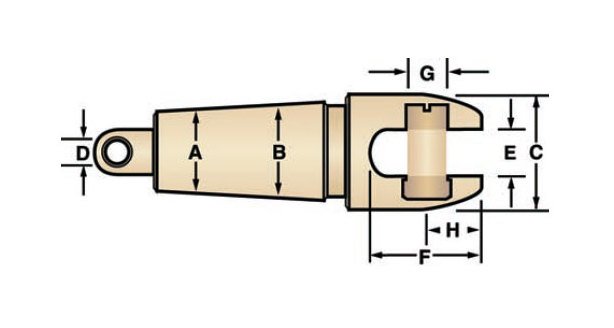

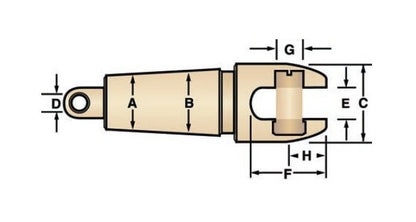

Product Specifications
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
2.06 to 2.18
Specifications Innerduct Id Range A To B Mm
52 to 56
Specifications Max Od C In
2.50
Specifications Max Od C Mm
64
Specifications Nom Size In
2
Specifications Nom Size Mm
51
Specifications Note
Will fit the 3/8 " and 1/2” cable pulling harnesses only.
Specifications Pin Center H In
1.25
Specifications Pin Center H Mm
32
Specifications Pin Diameter G In
0.88
Specifications Pin Diameter G Mm
22
Specifications Slot Depth F In
2.80
Specifications Slot Depth F Mm
71
Specifications Slot Width E In
1.00
Specifications Slot Width E Mm
25
