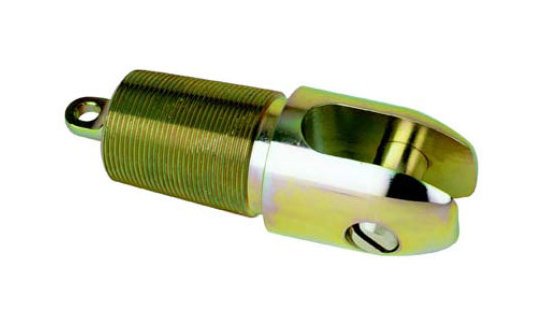

Clevis Head Innerduct Pulling Eyes - Threaded Slotted Head with Clevis Pin
Clevis Head Innerduct Pulling Eyes - Threaded Slotted Head with Clevis Pin
SKU:PUL-c972fc
Achieve secure and efficient innerduct pulling with our Clevis Head Pulling Eyes. Designed for precise attachment with tapered threads and clevis pin.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Clevis Head Innerduct Pulling Eyes - Threaded Slotted Head with Clevis Pin
$24.99
Quantity: 1
Claim Your Seller Account
Clevis Head Innerduct Pulling Eyes - Threaded Slotted Head with Clevis Pin
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure secure innerduct pulling with our Clevis Head Innerduct Pulling Eyes. Featuring tapered threads and a slotted head with clevis pin, these pulling eyes allow direct attachment to all multiple pulling harness leg ends. Designed for innerduct I.D. ranges of 0.81 to 0.93 inches, they withstand maximum pulling tensions, exceeding manufacturer recommendations. Determine the correct size by matching the innerduct I.D. with specified dimensions. Compatible with Condux pulling harnesses for versatile usage and reliable performance.

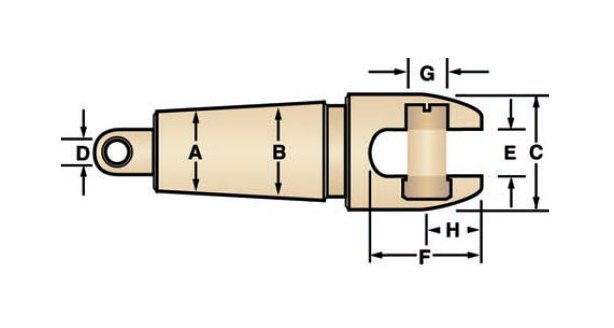

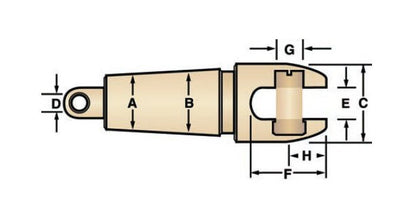

Product Specifications
Specifications Hole Diameter D In
0.25
Specifications Hole Diameter D Mm
6
Specifications Innerduct Id Range A To B In
0.81 to 0.93
Specifications Innerduct Id Range A To B Mm
21 to 24
Specifications Max Od C In
1.25
Specifications Max Od C Mm
32
Specifications Nom Size In
7/8
Specifications Nom Size Mm
22
Specifications Note
Will fit all Condux multiple pulling harnesses.
Specifications Pin Center H In
0.59
Specifications Pin Center H Mm
15
Specifications Pin Diameter G In
0.38
Specifications Pin Diameter G Mm
10
Specifications Slot Depth F In
1.34
Specifications Slot Depth F Mm
34
Specifications Slot Width E In
0.56
Specifications Slot Width E Mm
14
