Clevis Pin Innerduct Pulling Eyes
Clevis Pin Innerduct Pulling Eyes
SKU:PUL-98b622
Enhance your innerduct installations with Clevis Pin Pulling Eyes for unmatched strength and stability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Clevis Pin Innerduct Pulling Eyes
$29.99
Quantity: 1
Claim Your Seller Account
Clevis Pin Innerduct Pulling Eyes
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

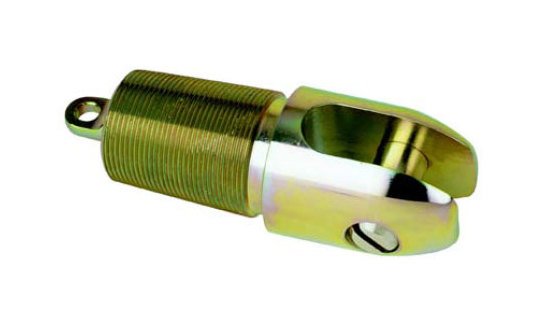

The Clevis Pin Innerduct Pulling Eyes offer unparalleled strength and stability for innerduct installations. Featuring tapered threads and a slotted head with a clevis pin, these pulling eyes allow direct attachment to multiple pulling harness leg ends. Designed to withstand high pulling tensions, they ensure secure gripping within innerducts. To determine the correct size, measure the innerduct's inside diameter, ensuring it falls within the specified range. Compatible with all Condux multiple pulling harnesses, these pulling eyes guarantee efficient and reliable installations.

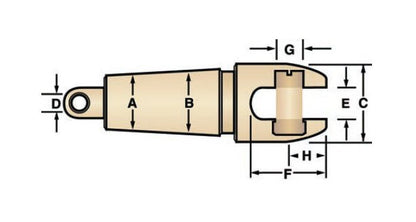

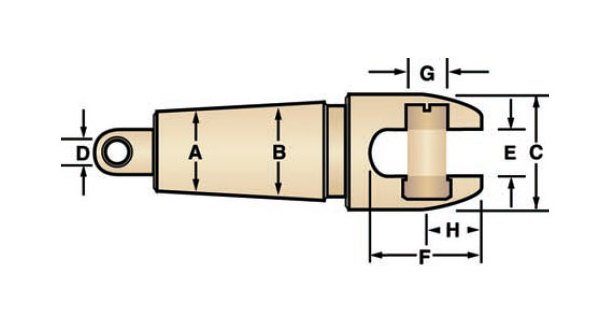

Product Specifications
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.06 to 1.18
Specifications Innerduct Id Range A To B Mm
27 to 30
Specifications Max Od C In
1.44
Specifications Max Od C Mm
37
Specifications Nom Size In
1-1/4
Specifications Nom Size Mm
32
Specifications Note
Will fit all Condux multiple pulling harnesses.
Specifications Pin Center H In
0.59
Specifications Pin Center H Mm
15
Specifications Pin Diameter G In
0.44
Specifications Pin Diameter G Mm
11
Specifications Slot Depth F In
1.41
Specifications Slot Depth F Mm
36
Specifications Slot Width E In
0.59
Specifications Slot Width E Mm
15
