Clevis Pin Innerduct Pulling Eyes
Clevis Pin Innerduct Pulling Eyes
SKU:PUL-0046c0
Enhance innerduct installations with our durable Clevis Pin Pulling Eyes for secure and efficient operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Clevis Pin Innerduct Pulling Eyes
$29.99
Quantity: 1
Claim Your Seller Account
Clevis Pin Innerduct Pulling Eyes
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

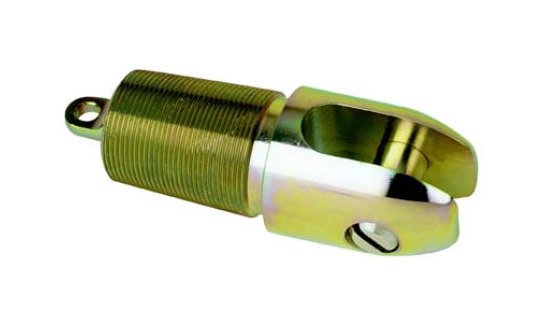

Enhance your innerduct pulling operations with our Clevis Pin Innerduct Pulling Eyes. Featuring tapered threads and a slotted head with a secure clevis pin, these pulling eyes ensure direct attachment to multiple pulling harness leg ends. Designed to withstand high tensions, these eyes prevent pull-out until exceeding manufacturers' recommended pulling limits. Easily determine the correct size using the innerduct inside diameter. Experience efficient and reliable innerduct installations with these premium quality pulling eyes.

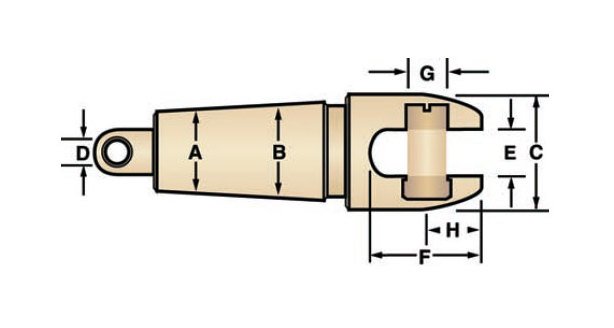

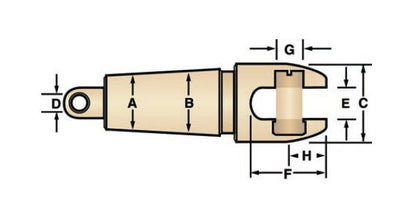

Product Specifications
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.23 to 1.39
Specifications Innerduct Id Range A To B Mm
31 to 35
Specifications Max Od C In
1.63
Specifications Max Od C Mm
41
Specifications Nom Size In
1-1/4
Specifications Nom Size Mm
32
Specifications Note
Will fit all Condux multiple pulling harnesses.
Specifications Pin Center H In
0.78
Specifications Pin Center H Mm
20
Specifications Pin Diameter G In
0.56
Specifications Pin Diameter G Mm
14
Specifications Slot Depth F In
1.59
Specifications Slot Depth F Mm
40
Specifications Slot Width E In
0.63
Specifications Slot Width E Mm
16
