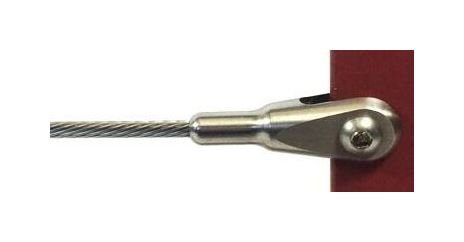

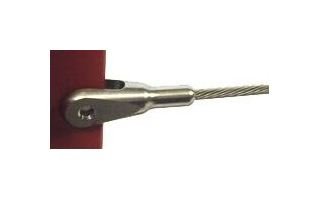

Clip-On Fixed Jaw for Architectural Cable Railings
Clip-On Fixed Jaw for Architectural Cable Railings
SKU:ARC-45b8a1
Securely attach cables with ease using the Clip-On Fixed Jaw for architectural railings. No field swaging required.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Clip-On Fixed Jaw for Architectural Cable Railings
$24.99
Quantity: 1
Claim Your Seller Account
Clip-On Fixed Jaw for Architectural Cable Railings
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

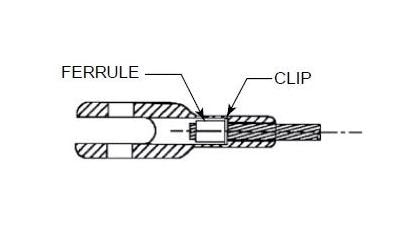

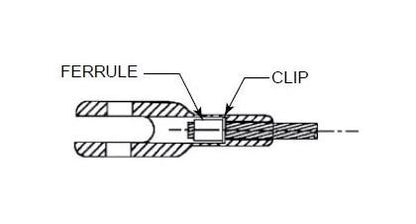

The Clip-On Fixed Jaw is designed for architectural cable railings, offering a seamless attachment with a special clip for easy installation by hand. All hardware is pre-swaged at the factory, eliminating the need for field swaging. This Fixed Jaw is ideal for use with Invisiware® receivers or Adjust-A-Jaw® tensioners. Available for 1/8" and 3/16" cable diameters, ensuring a secure and efficient railing system without additional field work.
Product Specifications
Specifications D Dia
0.260 "
Specifications E Thread
1/4-28
Specifications G
0.260 "
Specifications K
0.56 "
Specifications L
1.75 "
Specifications Use With Ferrule No
F-4
Specifications Use With Screw No
SC-6
Specifications Wire Rope Dia
1/8 "
CAGE
0T9L4
NAICS
332999
PSC
5340
