Closed Cell Foam
Closed Cell Foam
SKU:PVC-0e0426
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order

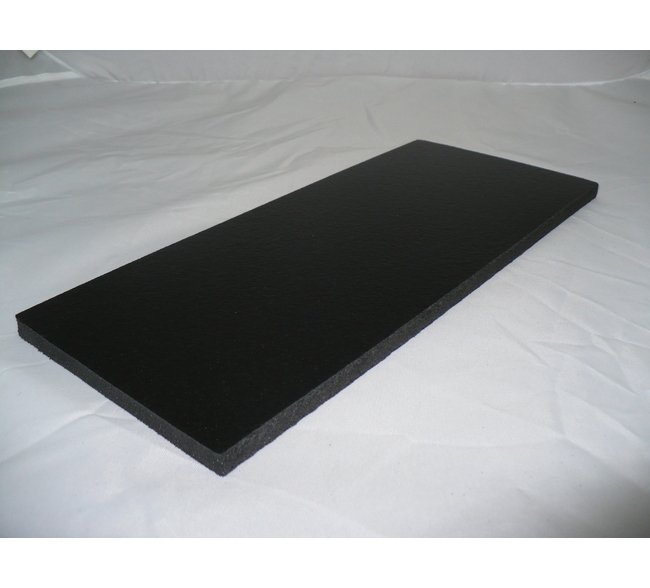

Closed Cell Foam
$49.99
Quantity: 1
Claim Your Seller Account
Closed Cell Foam
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our PVC closed-cell foam has a Shore A Durometer of 35 ± and weights 35 pounds per cubic foot. The thickness is 3/8 in and is strong enough to walk on without major distortion due to the cells or bubbles not being broken; they resemble inflated balloons or soccer balls, piled together in a constant configuration. This makes it strong and flexible because the bubbles are strong enough to take a lot of pressure, like the inflated tires that hold up an automobile. Also, the nitrile provides a non-slip surface. Excellent for light weight applications.
Product Specifications
General Capabilities Capabilities
Our pads are custom cut – NOT CUSTOM PRICED – to your specifications. Since we design all of our pads to address your individual situation, we have the capability of performing JIT delivery. Using templates, CAD drawings or any form of information you have, we work with you one-on-one to isolate the issue.The Closed Cell Foam is available in one thickness:3/8 in
General Capabilities Full Sheet Size
22 in x 40 in
General Capabilities How We Do It
Our technical and sales teams work with you to determine the appropriate size for your application. We gather several important clues from you to do this:The number and size of feet or “legs” on your equipment or machineThe weight of the equipment or machineIts current RPM’sFloor and building structure where the equipment residesOr, if you prefer, use our on-line configurator (insert link for configurator)
General Capabilities Materialscomposition
Our PVC closed-cell foam has a Shore A Durometer of 35 ± 5 and weighs 35 pounds per cubic foot. The thickness is 3/8 in and is strong enough to walk on without major distortion due to the cells or bubbles not being broken; they resemble inflated balloons or soccer balls, piled together in a constant configuration. This makes it strong and flexible because the bubbles are strong enough to take a lot of pressure, like the inflated tires that hold up an automobile. Also, the nitrile provides a non-slip surface. Excellent for light weight applications.
Specifications Coefficient Of Friction
Static: 1.198 u
Specifications Deflection Displacement
2 mm
Specifications Kinetic
1.316 u
Specifications Materials
Foam
Specifications Max Load
25 PSI at 10 Hz
Specifications Shore A Durometer
35
Specifications Size
22 in x 40 in
Specifications Temperature Range
-20 degrees F to +160 degrees F
Specifications Tensile Strength
250 PSI
Specifications Thickness
3/8 in
Specifications Weight
8.40 lb
