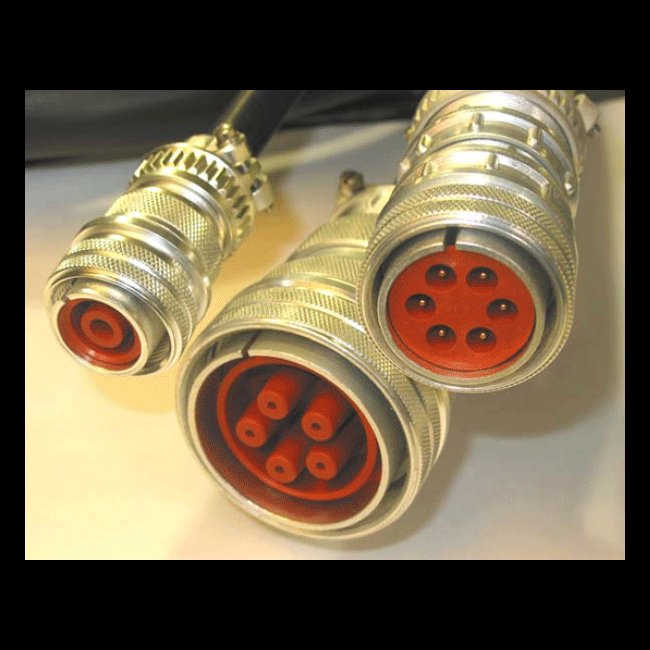

CMC Series Cable Clamp Connector
CMC Series Cable Clamp Connector
SKU:HIG-3e8d11
High voltage cable clamp connector for reliable performance in demanding environments. Corrosion-resistant with multiple hardware plating options for enhanced durability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
CMC Series Cable Clamp Connector
$59.99
Quantity: 1
Claim Your Seller Account
CMC Series Cable Clamp Connector
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CMC Series Cable Clamp Connector is a high voltage electrical accessory designed for optimal performance in demanding applications. Featuring brass and gold-plated pin contacts, commercial bronze socket contacts, and aluminum alloy construction meeting MIL-C-5015 standards, this connector ensures reliable connectivity and durability. It is corona-resistant with tapered interface, suitable for use in various environments including electronic countermeasures and medical applications. With options for shield termination hardware and a wide range of hardware plating choices, this connector offers flexibility and performance excellence.
Product Specifications
Applications 0
Electronic Countermeasures Radar CRT Displays Travelling Wave Tubes High Voltage Power Supplies Medical ApplicationsMedical Applications
Specifications Environmental Temperature
-55 to +125 ºC
Specifications Features
Corona Resistant Tapered InterfaceField or Factory AssembledUse with Shielded or Unshielded CableVarious Hardware Plating Available
Specifications Finish Specifications And Options
Electroless Nickel Plated per MIL-C-26074Optional Stainless Steel Hardware Stainless steel per ASTM A582, passivated per QQ-P-35
Specifications Insulators Material
Silicone Rubber per ZZ-R-765Thermoset glass filled Epoxy or Diallyl Phathalate per MIL-M-14
Specifications Pin Contacts Material
Brass, gold plated per MIL-G-452C4.
Specifications Sea Level Altitude
0 to 70,000 ft
Specifications Shell Coupling Nut And Related Hardware Material
Aluminum alloy in accordance with MIL-C-5015, MS-3100 series
Specifications Socket Contacts Material
Commercial bronze, Gold plated per MIL-G-45204
Specifications Wires Optional
No. 16 AWG thru No. 24 AWG stranded, PTFE or silicone coated insulated
