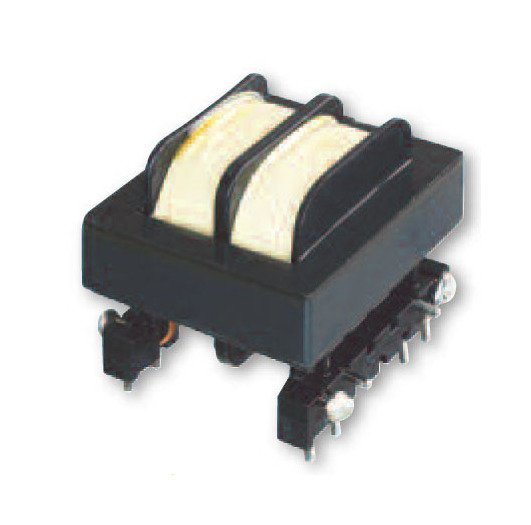

The CME Series Common Mode Inductors are essential components in power supplies, effectively eliminating common noise across all lines and providing superior differential mode filtering. Designed to meet stringent regulatory requirements, these compact inductors help minimize AC line interference common in high-frequency switching power supplies. Featuring a highly dependable Triad common mode EMI suppression design and constructed with UL rated 130 °C materials, these inductors are optimal for applications demanding reliable noise suppression and efficient power delivery.
Product Specifications
Note 0
A CME375-KIT is available which includes each one of the components in section A.

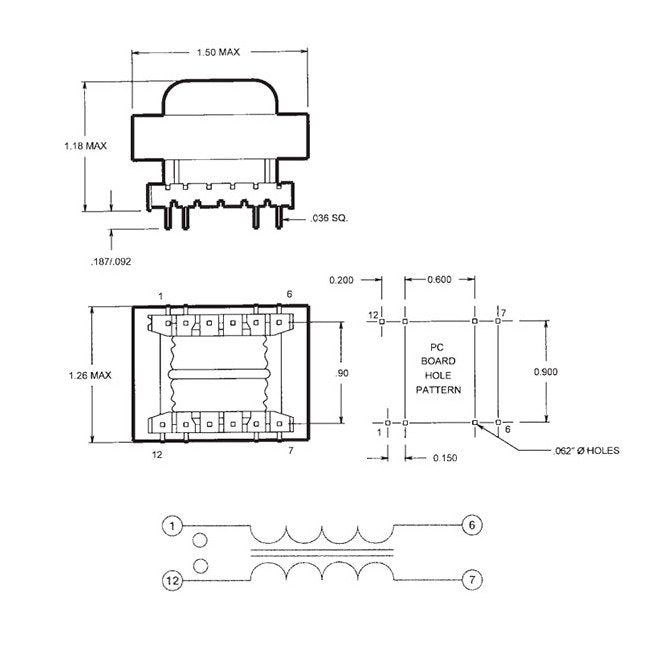

Specifications Dimension A
0.150 in
Specifications Dimension B
0.600 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.036 in²
Specifications Dimension H
1.18 in
Specifications Dimension L
1.50 in
Specifications Dimension W
1.26 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.316 Ohm
Specifications Min Inductance
28.6 mH
Specifications Min Leakage
300.0 µH
Specifications Rms Current
2.200 A
Specifications Weight
0.54 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
