CME Series Common Mode Inductor
CME Series Common Mode Inductor
SKU:IND-e0469d
Dependable CME Series Common Mode Inductor for noise reduction in power supplies. Meets regulatory standards & ensures high performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CME Series Common Mode Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CME Series Common Mode Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

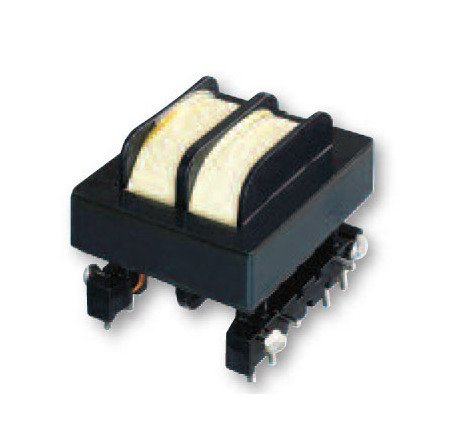

The CME Series Common Mode Inductor is a reliable Triad solution for EMI suppression in power supplies, effectively reducing common-mode noise and providing differential mode filtering. Meeting regulatory standards, these compact UL-rated inductors minimize AC line interference caused by high frequency power supplies. Designed for optimal performance close to the input source, these inductors are hi-pot tested, ensuring safety and quality. With a min. inductance of 40.5 mH, RMS current of 0.50 A, and compliance with industry standards like CSA, IEC, UL, and VDE, these inductors are a dependable choice for noise reduction in various applications.
Product Specifications
Note 0
A CME2425-KIT is available which includes each one of the components in section B.

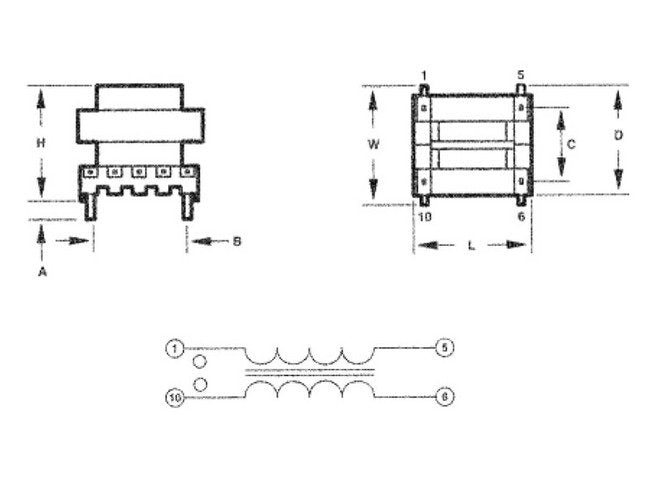

Specifications Dimension A
0.125 in
Specifications Dimension B
0.800 in
Specifications Dimension C
0.610 in
Specifications Dimension D
0.029 in²
Specifications Dimension H
1.075 in
Specifications Dimension L
1.050 in
Specifications Dimension W
1.050 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
1.260 Ohm
Specifications Min Inductance
40.5 mH
Specifications Min Leakage
240.0 µH
Specifications Rms Current
0.50 A
Specifications Weight
0.154 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
