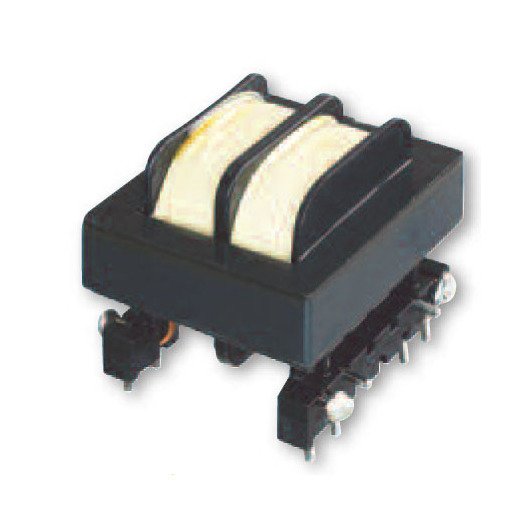

CME Series Common Mode Inductor - E-Core
CME Series Common Mode Inductor - E-Core
SKU:IND-46b111
Dependable common mode inductor with E-Core for noise elimination in power supplies. Meets regulatory standards for AC line interference reduction.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
CME Series Common Mode Inductor - E-Core
$34.99
Quantity: 1
Claim Your Seller Account
CME Series Common Mode Inductor - E-Core
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CME Series Common Mode Inductor with E-Core technology offers exceptional EMI suppression for power supplies, eliminating common noise across all lines. Providing effective differential mode filtering, this inductor conforms to regulatory standards, minimizing AC line interference caused by high-frequency power supplies. Designed for reliability, it features UL-rated 130°C materials, making it ideal for institutional and government procurement needs.
Product Specifications
Note 0
A CME375-KIT is available which includes each one of the components in section A.

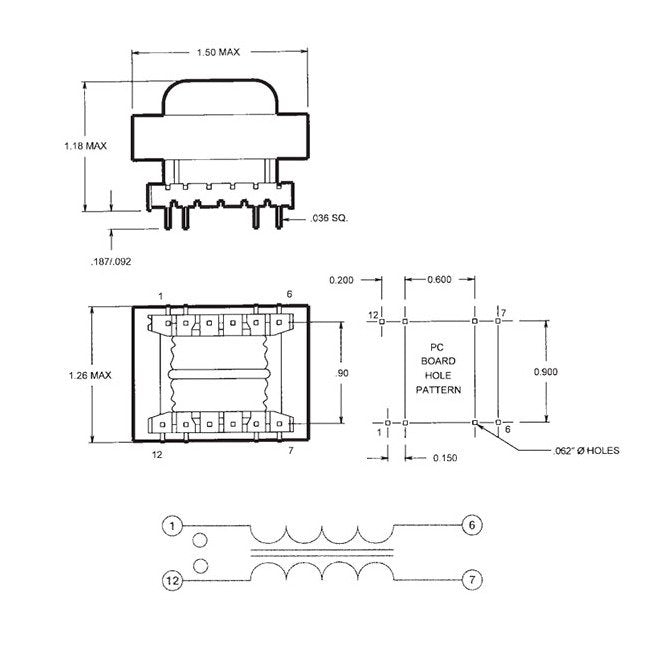

Specifications Dimension A
0.150 in
Specifications Dimension B
0.600 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.036 in²
Specifications Dimension H
1.18 in
Specifications Dimension L
1.50 in
Specifications Dimension W
1.26 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
1.240 Ohm
Specifications Min Inductance
111.6 mH
Specifications Min Leakage
1.1 µH
Specifications Rms Current
1.100 A
Specifications Weight
0.54 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
