CME Series Common Mode Inductor - E-Core
CME Series Common Mode Inductor - E-Core
SKU:IND-0ef863
Dependable E-Core Common Mode Inductor with effective EMI suppression, ideal for power supplies, meets regulatory standards, ensuring reliable performance.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
CME Series Common Mode Inductor - E-Core
$32.99
Quantity: 1
Claim Your Seller Account
CME Series Common Mode Inductor - E-Core
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

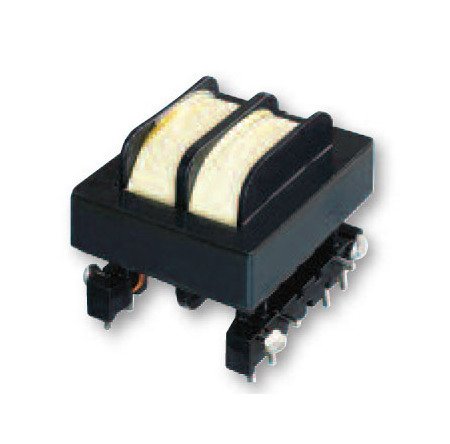

The CME Series Common Mode Inductor features highly dependable Triad common mode EMI suppression, ideal for power supplies to eliminate noise common to all lines. With effective differential mode filtering, this compact inductor meets regulatory requirements, minimizing AC line transmitted interference. Constructed with UL rated 130°C materials, it offers a min. inductance of 2.37 mH, RMS current of 2.00 A, and max. DC resistance of 0.080 Ohm, ensuring superior performance and reliability.
Product Specifications
Note 0
A CME2425-KIT is available which includes each one of the components in section B.

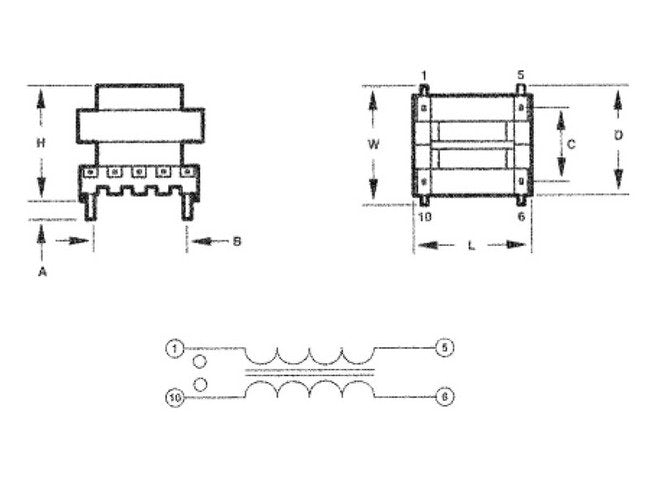

Specifications Dimension A
0.125 in
Specifications Dimension B
0.800 in
Specifications Dimension C
0.610 in
Specifications Dimension D
0.029 in²
Specifications Dimension H
1.075 in
Specifications Dimension L
1.050 in
Specifications Dimension W
1.050 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.080 Ohm
Specifications Min Inductance
2.37 mH
Specifications Min Leakage
14.0 µH
Specifications Rms Current
2.00 A
Specifications Weight
0.154 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
