CME Series Common Mode Inductor - E-Core
CME Series Common Mode Inductor - E-Core
SKU:IND-5ec62d
Dependable E-Core Common Mode Inductor for noise elimination in power supplies. Meets regulatory standards. UL-rated materials.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CME Series Common Mode Inductor - E-Core
$24.99
Quantity: 1
Claim Your Seller Account
CME Series Common Mode Inductor - E-Core
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

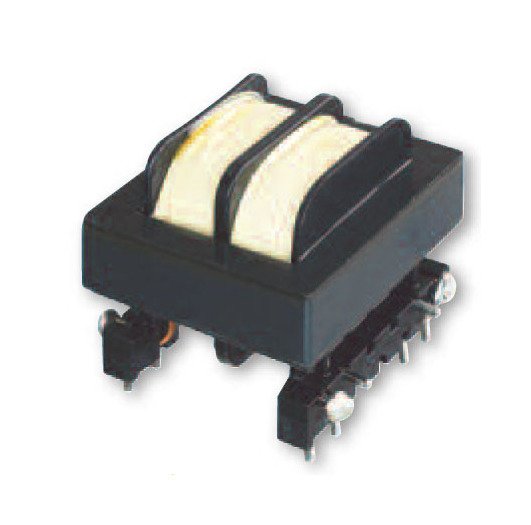

The CME Series Common Mode Inductor, featuring the E-Core design, offers highly dependable EMI suppression for power supplies, effectively eliminating common noise in all lines. With a minimum inductance of 4.40 mH, RMS current of 5.500 A, and maximum DC resistance of 0.049 Ohm, these inductors are designed to meet stringent regulatory requirements. Built with UL-rated 130°C materials, they minimize AC line interference from high-frequency switching power supplies.
Product Specifications
Note 0
A CME375-KIT is available which includes each one of the components in section A.

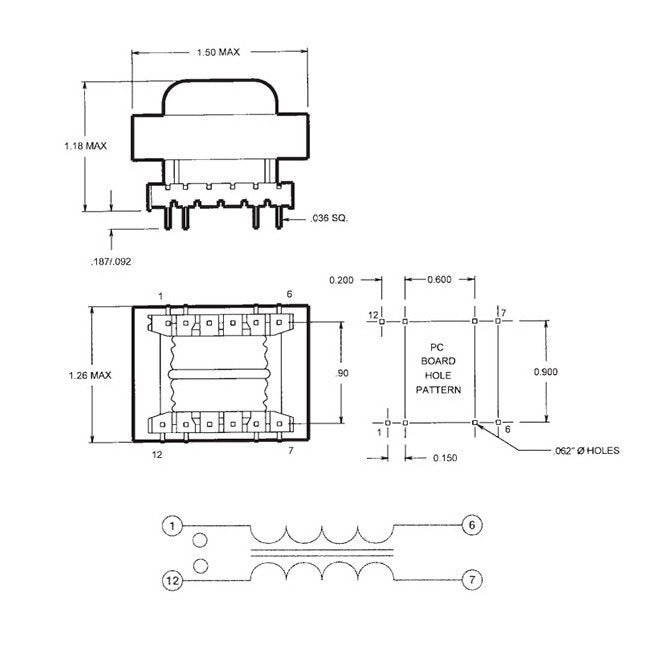

Specifications Dimension A
0.150 in
Specifications Dimension B
0.600 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.036 in²
Specifications Dimension H
1.18 in
Specifications Dimension L
1.50 in
Specifications Dimension W
1.26 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.049 Ohm
Specifications Min Inductance
4.40 mH
Specifications Min Leakage
45.0 µH
Specifications Rms Current
5.500 A
Specifications Weight
0.54 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
