CME Series Core Common Mode Inductor
CME Series Core Common Mode Inductor
SKU:IND-9c00ea
Dependable Common Mode Inductor for noise elimination in power supplies. Meets regulatory standards.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
CME Series Core Common Mode Inductor
$19.99
Quantity: 1
Claim Your Seller Account
CME Series Core Common Mode Inductor
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

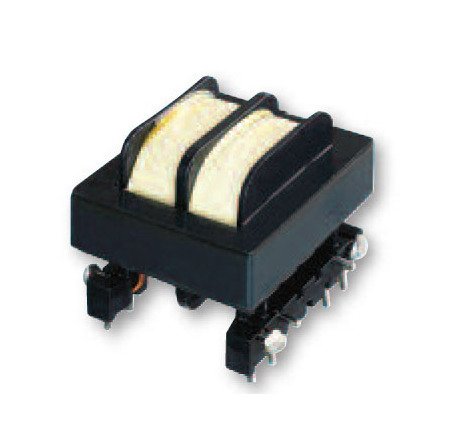

The CME Series Common Mode Inductors are expertly designed to provide dependable Triad common mode EMI suppression. Ideal for a wide range of power supplies, these inductors effectively eliminate noise common to all lines while offering superior differential mode filtering. Built to meet stringent regulatory requirements, these compact inductors minimize AC line transmitted interference associated with high-frequency switching power supplies. Constructed with UL-rated 130°C materials, these inductors are a reliable choice for noise reduction and ensuring optimal power supply performance.
Product Specifications
Note 0
A CME2425-KIT is available which includes each one of the components in section B.

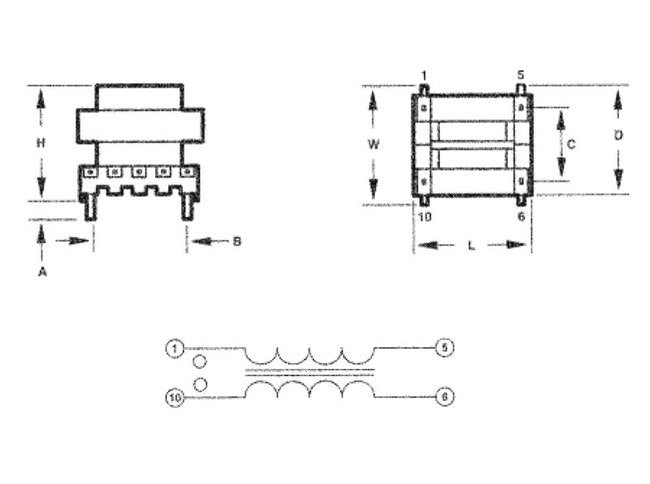

Specifications Dimension A
0.125 in
Specifications Dimension B
0.800 in
Specifications Dimension C
0.610 in
Specifications Dimension D
0.029 in²
Specifications Dimension H
1.075 in
Specifications Dimension L
1.050 in
Specifications Dimension W
1.050 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.319 Ohm
Specifications Min Inductance
9.80 mH
Specifications Min Leakage
60.0 µH
Specifications Rms Current
1.00 A
Specifications Weight
0.154 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
