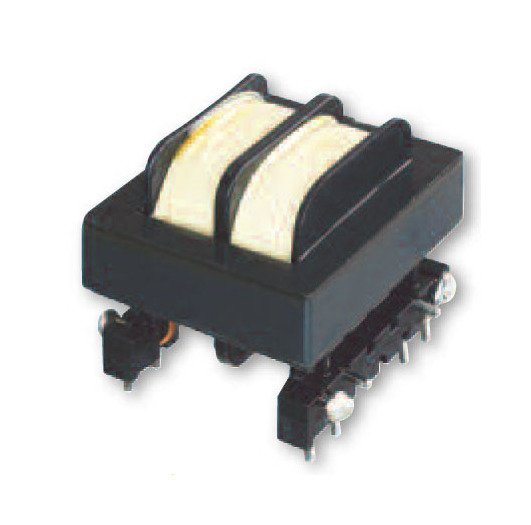

The CME Series Core Common Mode Inductor by Triad offers reliable EMI suppression for power supplies, effectively eliminating noise common to all lines and providing exceptional differential mode filtering. Designed to meet stringent regulatory requirements, these compact UL-rated inductors minimize AC line transmitted interference associated with high-frequency switching power supplies. With a minimum inductance of 176.1 mH, RMS current of 0.870 A, and maximum DC resistance of 1.980 Ohm, this inductor is ideal for applications requiring high-performance noise suppression.
Product Specifications
Note 0
A CME375-KIT is available which includes each one of the components in section A.

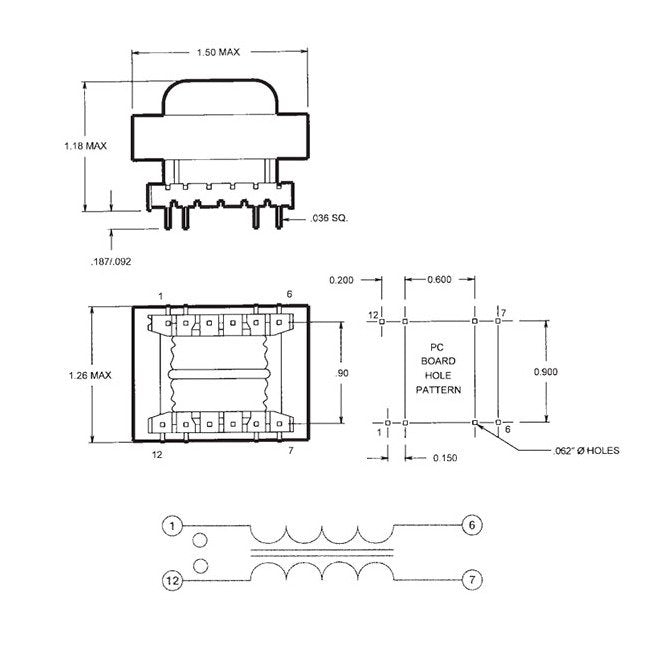

Specifications Dimension A
0.150 in
Specifications Dimension B
0.600 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.036 in²
Specifications Dimension H
1.18 in
Specifications Dimension L
1.50 in
Specifications Dimension W
1.26 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
1.980 Ohm
Specifications Min Inductance
176.1 mH
Specifications Min Leakage
1.8 µH
Specifications Rms Current
0.870 A
Specifications Weight
0.54 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
