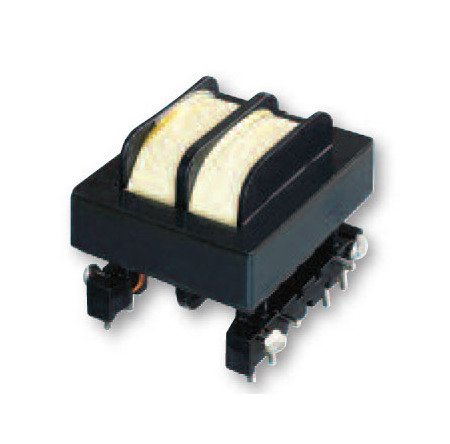

CME Series E-Core Common Mode Inductor
CME Series E-Core Common Mode Inductor
SKU:IND-81e846
Enhance power supply efficiency with the CME Series E-Core Inductor for superior EMI suppression. Meet critical compliance standards with ease.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
CME Series E-Core Common Mode Inductor
$25.99
Quantity: 1
Claim Your Seller Account
CME Series E-Core Common Mode Inductor
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power supplies with the CME Series E-Core Common Mode Inductor, a reliable Triad product designed for efficient common mode EMI suppression and differential mode filtering. With a minimum inductance of 6.00 mH and a 1.28 A RMS current, this compact UL-rated inductor effectively minimizes AC line interference caused by high frequency switch power supplies. Hi-pot tested at 2500 VRMS, meeting industry standards like CSA, IEC, UL, and VDE, ensuring top-notch performance and compliance.
Product Specifications
Note 0
A CME2425-KIT is available which includes each one of the components in section B.

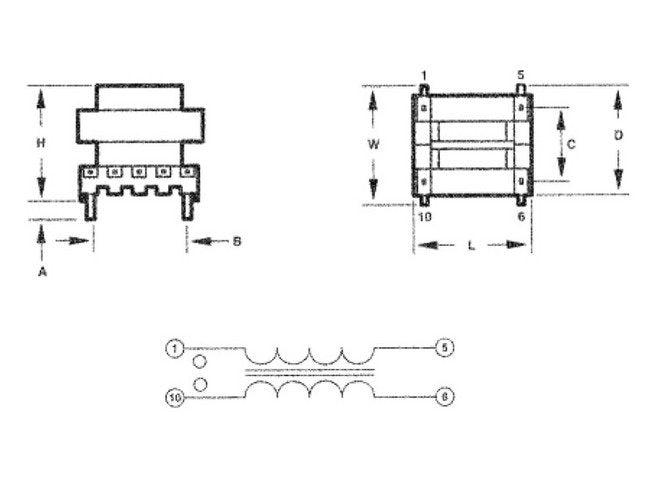

Specifications Dimension A
0.125 in
Specifications Dimension B
0.800 in
Specifications Dimension C
0.610 in
Specifications Dimension D
0.029 in²
Specifications Dimension H
1.075 in
Specifications Dimension L
1.050 in
Specifications Dimension W
1.050 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.202 Ohm
Specifications Min Inductance
6.00 mH
Specifications Min Leakage
36.0 µH
Specifications Rms Current
1.28 A
Specifications Weight
0.154 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
