CME Series E-Core Common Mode Inductor
CME Series E-Core Common Mode Inductor
SKU:IND-613029
Dependable E-Core Inductor for EMI suppression in power supplies, featuring high inductance, low resistance, and compact design.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CME Series E-Core Common Mode Inductor
$24.99
Quantity: 1
Claim Your Seller Account
CME Series E-Core Common Mode Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

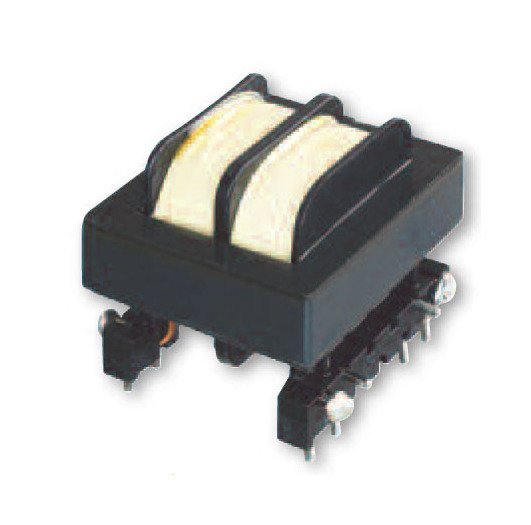

The CME Series E-Core Common Mode Inductor is a reliable Triad component designed for efficient EMI suppression in power supplies, ensuring minimal noise interference. With a high-performance construction meeting UL 130°C standards, this inductor offers a minimum inductance of 17.8 mH, RMS current of 2.700 A, and maximum DC resistance of 0.196 Ohm. Its compact design and industry-standard compliance make it an ideal choice for applications requiring effective differential mode filtering and AC line interference reduction.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
A CME375-KIT is available which includes each one of the components in section A.

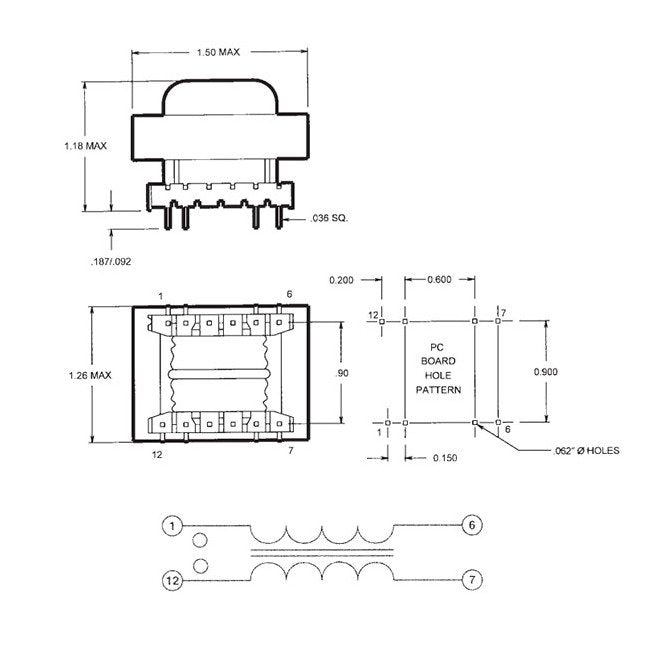

Specifications Dimension A
0.150 in
Specifications Dimension B
0.600 in
Specifications Dimension C
0.200 in
Specifications Dimension D
0.036 in²
Specifications Dimension H
1.18 in
Specifications Dimension L
1.50 in
Specifications Dimension W
1.26 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.196 Ohm
Specifications Min Inductance
17.8 mH
Specifications Min Leakage
180.0 µH
Specifications Rms Current
2.700 A
Specifications Weight
0.54 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
